Zero oversights. Reliable support to prevent involvement in accidents.

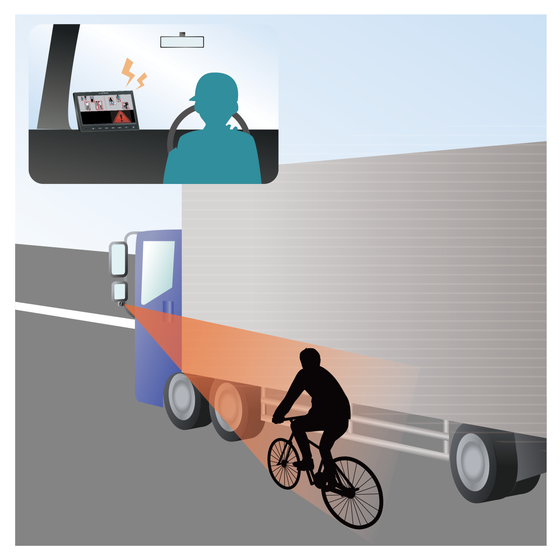

In the environment where trucks operate, there are various "moving hazards" such as pedestrians, bicycles, motorcycles, and workers. Even drivers who are highly conscious of safe driving find it difficult to be aware of all objects that enter their blind spots. Trucks have large and long bodies, and the shapes of their cargo areas and cabins create many areas that are hard to see, such as on the sides, behind, and directly underneath the vehicle. This structural blind spot is also the reason why accidents often occur during turns or while reversing. The "BFV203" from Pal Giken is an aftermarket warning system developed to cover these "invisible risks." Two AI cameras continuously monitor the area around the vehicle, and when they recognize pedestrians, bicycles, or motorcycles, they immediately alert the driver through video on a monitor and audio from a speaker. It can be easily retrofitted to your current truck. After installation, it will assist in enhancing the driver's visibility from everyday driving to loading and unloading operations, helping to detect potential accidents at an early stage. *For more detailed information, please refer to the PDF or contact us.*
Inquire About This Product
basic information
【Function】 Detection targets: pedestrians, bikes, bicycles, etc. with people on them Detection range: approximately 7m forward to approximately 12m backward (varies depending on installation position) Detection environment: illuminance of approximately 15 lux or more (around streetlight level at night) 【Identification Unit】 Power consumption: approximately 7.5W Input: +4/-1 (vehicle speed pulse) Output: FET +2 (maximum 0.2A, with overcurrent protection) Permissible voltage: +60V Dimensions and weight: 157.8×89.4×43.5mm / approximately 780g Temperature range: operating -20 to +65℃, storage -40 to +90℃ 【Camera】 NTSC/CMOS approximately 350,000 pixels Dimensions and weight: 23×23×32.6mm / approximately 54g Temperature: operating -20 to +70℃, storage -30 to +80℃ 【Indicator】 Warning: red LED 15×20mm Status: red LED φ3mm Dimensions and weight: 35×12×75mm / approximately 20g 【Monitor】 NTSC / 7 inches (154×86mm) Dimensions and weight: 174×125×27mm / approximately 0.5kg Temperature: operating -10 to +60℃, storage -20 to +70℃
Price range
Delivery Time
Applications/Examples of results
- The AI automatically recognizes pedestrians, bicycles, and motorcycles entering the side or rear of the truck while it is in motion. It captures movements in positions that are difficult to see in mirrors, enabling early detection of contact or entrapment risks. - The moment a detection occurs, the system alerts the driver through audio and visual displays inside the vehicle. This helps compensate for oversight or delayed judgment and is utilized as a safety support to prevent accidents before they happen. - It detects the approach of workers in logistics centers, on-site yards, and loading areas. It supports safety checks in particularly dangerous situations, such as during reversing or maneuvering. - It can reliably detect even in nighttime or dimly lit areas (with an illumination of 15 Lux or more). It accommodates a wide range of operating hours, including early morning departures and late-night deliveries.
catalog（2）
Download All Catalogs
News about this product（1）
Company information
Pal Giken is a group of engineers that realizes customers' dreams through manufacturing technology. We provide a unique product, a "one-and-only product," that meets the specific needs of our customers, rather than offering something that exists in multiple forms in the world.
