Reduce the burden of repetitive work – a cord winding assist jig for welfare and light-duty workplaces that enables one-handed cable winding.

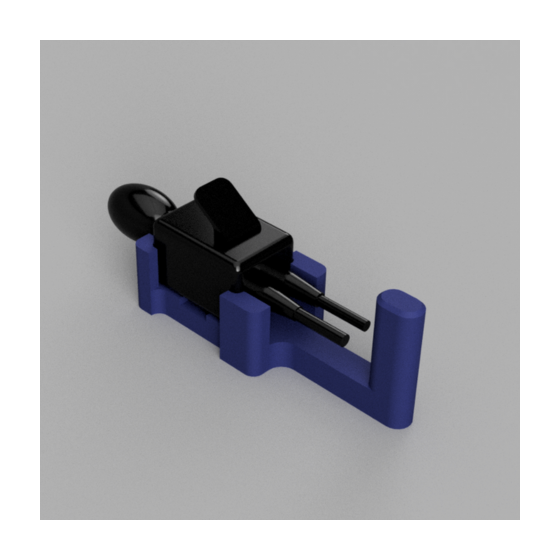

The “Cord Winding Jig (CWJ-xx)” is a light-duty assist tool that allows cables and cords to be wound easily with one hand. It has been developed for use in welfare facilities and light-duty workplaces where operators may have reduced finger strength and where reducing the burden of repetitive tasks is important. In addition to improving work efficiency, it helps anyone wind cords into a consistent shape, reducing variation in the appearance and finish of products.
Inquire About This Product
basic information
Material: PLA plastic (3D-printed) Applicable cord diameter: Approx. φ4–6 mm (reference value) Size: 28 mm (W) × 80 mm (D) × 20 mm (H) for the standard type Customization: Available (minimum lot: from 1 unit) Features: Simple structure that enables one-handed cord winding; suitable for welfare workshops, printing operations, and other light-duty workplaces; lightweight plastic body that is easy to hold and helps reduce the burden of repetitive winding tasks; custom shapes can be designed to match specific cords and applications.
Price information
Reference price: 9,800–12,300 JPY (including tax) per unit Designed with small-lot production using 3D printing in mind. Prices vary depending on specifications and quantity, including customization to match cable diameter and shape. Detailed quotations will be provided after confirming your required specifications.
Price range
P2
Delivery Time
P4
※Typical lead time: Around 2 weeks. Lead time may be extended depending on customization complexity and requested specifications.
Applications/Examples of results
Organizing microphone cables. Bundling AC adapter cords. Winding PC cables and LAN cables, and similar applications.
Detailed information
-
For microphone cables
-
For AC adapter cables
-
For PC cables
catalog（1）
Download All Catalogs
Company information
Our company designs and manufactures assistive tools that consider the needs of people, including jigs, tools, equipment, assembly devices, and inspection devices tailored to specific applications. Additionally, we offer prototype production of tools, parts, and molds using 3D printing, as well as the production of custom items, customization, and special processing. With our meticulous technical skills and a network of partner companies, we flexibly propose solutions to meet our customers' requests and inquiries.
