A New Era of FPD-Link III Camera AI Expanding with NGX022 Lepton

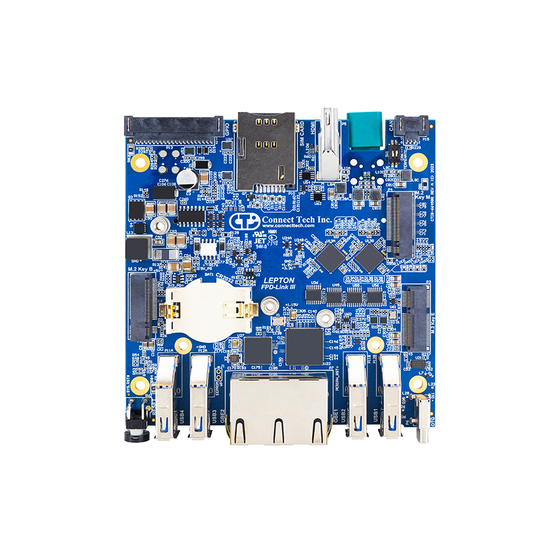

The Lepton FPD-Link III carrier board is designed for NVIDIA Jetson Orin NX and Jetson Orin Nano modules, providing seamless integration and expansion capabilities. It features dual GbE ports and abundant USB connections, supports four FPD-Link III camera inputs, NVMe storage expansion, and flexible M.2 slots, catering to a variety of applications. Additionally, with CAN FD support, a wide input power range, and a robust I/O connector design, it is ideal for machine learning, computer vision, and robotics applications.
Inquire About This Product
basic information
Compatibility: Jetson Orin NX / Nano Camera: FPD-Link III ×4 (with deserializer) LAN: GbE ×2 (one via PCIe) Storage: NVMe M.2 M-Key (2280) ×1 Video Output: HDMI 2.0 ×1 M.2 Expansion: WiFi (E-Key), LTE (B-Key) USB: USB 3.0 ×4, USB-C OTG ×1, USB for M.2 expansion ×2 I/O: UART ×2, RS-485, I2C ×2, SPI, PWM ×2, GPIO ×4, Trigger Input ×2 CAN: Isolated CAN FD ×1 Power Supply: DC 9–36V (4-pin connector) RTC: CR2032 holder Size/Weight: 104×110×34mm / 127g Temperature Range: -40 to +80°C
Price range
Delivery Time
Applications/Examples of results
Usage Examples - Multi-camera image processing for autonomous driving and ADAS - High-precision AI vision control in industrial robots - Surveillance and traffic control systems in smart cities - Multi-data processing for medical image analysis and research purposes Achievements and Advantages - Advanced visual processing achieved through multiple camera connections via FPD-Link III - Integratable into a wide range of systems with dual GbE and abundant I/O - Wide temperature range design that operates in harsh environments - Scalability and reliability optimized for AI inference and robotics applications
Detailed information
catalog（1）
Download All Catalogs
Company information
The evolution of digital technology has given rise to new needs, such as autonomous driving and ADAS technologies in the automotive industry, as well as imaging and vision technologies utilizing camera footage in the AI robotics sector. As a result, AI service businesses are transforming the business models of society and companies, leading to significant changes in daily life and society. Asmech collaborates with innovation companies related to AI and mobility in Europe, the United States, and Asian countries, focusing on the procurement of imaging components and devices in the fields of AI & IoT, automotive, and security. We provide cutting-edge products to customers aiming for solution development in the imaging sector, including robotics, autonomous driving, drones, industrial cameras, and recording devices. Additionally, we position service to local customers as one of our key challenges, forming alliances with local businesses, universities, government agencies, and local municipalities. Through our security-related businesses, such as the installation of security cameras and recording services, we aim to contribute to the local community.
