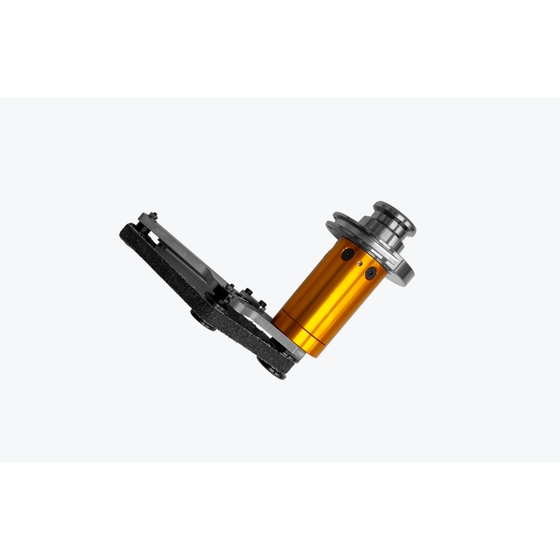

QC Type Belt Sander Angle Holder Model QCT35-BA10-1

Compatible with commercially available 10×330mm belts │ For removing burrs and secondary burrs at pin corners!

■SFT35-HiSP-QC Type Dedicated Belt Sander Holder■ Adopts our original standard QCT35 shank. ● Highly effective for removing burrs and secondary burrs at pin corners! This holder is designed for the removal of burrs from machined parts, castings such as aluminum die casts, and burrs from plastic molded products. It is particularly effective in removing burrs and secondary burrs at corners that are difficult to reach with rotary tools. ● Compatible with commercially available 10×330mm sanding belts! The sanding belts that can be used are compatible with products from various sanding material manufacturers as long as they are of the commercially available 10×330mm size. This provides a wide range of belt options, allowing for optimal combinations based on application and material. ● Maximum rotational speed of 20,000 min⁻¹ In accordance with the rotational speed of the SFT35-HiSP-QC type, the usable rotational speed ranges from 1,000 to 20,000 min⁻¹. ● High holding power ensured by the unique dual-surface constrained QCT35 shank The combination of a weak taper and a wide flange surface provides strong resistance to lateral forces, with the pulling force of the QCT35 shank consistently holding at 2 tons.
