Easy installation type water stop board "Box Wall" | Free demo product rental - Flood prevention
We will lend you a demo product for those who can't understand without actually seeing the item!

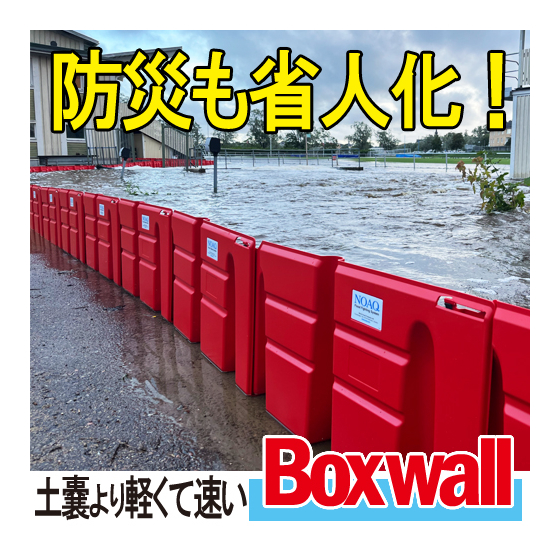

In response to voices saying they don't know what it actually is or how to arrange it, we will lend out demo products free of charge. Explanatory meetings are also possible. No anchors or tools needed! A simple water stop system that can be set up by two people in about two minutes for 10 meters! A flood prevention measure that replaces sandbags. The easy-to-install water stop board "Box Wall" is effective for flood prevention. It is fixed and stops water due to the water pressure acting on the main body. No tools are required. Because it is used in emergencies, it has a simple and easy-to-understand structure. 【Features】 - Can be set up in about 2 minutes for 10 meters (for a team of 2 people) - High mobility and easy installation method allow for quick preparation - Utilizes water pressure on the main body to block floods - Can be stacked for storage, saving space - Can be reused with simple cleaning - Suitable for small-scale protective measures 【Lending Details】 BW52: 2 main units Sealing strip material: 2 pieces Other lending options are also available, so please feel free to inquire. You only need to cover the shipping costs for the return. *For more details about the product, please contact us or download the PDF to view.
Inquire About This Product
Related Videos
basic information
One unit weighs 6.2 kg (BW52), making it lightweight and allowing for rapid deployment over a wide area. It can be stacked for storage during normal times, fitting into a corner of a warehouse or similar space. Additionally, it can be reused multiple times with simple cleaning. It can be set up by a small number of people, allowing for installation (and removal) without waiting for workers to arrive, in public facilities such as schools, as well as in shops and homes. 【Specifications of BW52】 ■ Dam height: 50 cm ■ Size: 980 mm (width) × 680 mm (depth) × 530 mm (height) ■ Weight: 6.2 kg/unit ■ Material - Body: PP (polypropylene) - Rubber part: EPDM (synthetic rubber) 【Specifications of BW102】 ■ Dam height: 1 m (equivalent to 144 sandbags with one unit) ■ Size: 992 mm (width) × 1199 mm (depth) × 1060 mm (height) ■ Weight: 15.2 kg ■ Material - Body: PP (polypropylene) - Rubber part: EPDM (synthetic rubber) It has also been proven effective for preventing chemical leaks. *For more details, please contact us or refer to the catalog.
Price information
【Loan Details】 BW52 Main Unit: 2 pieces Sealing strip material: 2 pieces Other loans are also available, so please feel free to inquire. Please only bear the arrangements and shipping costs for the return.
Delivery Time
※Typically, it can be shipped in about a week. Please consult us as it may vary depending on processing and timing.
Applications/Examples of results
Since 2009, we have been introduced by various users, both public and private, for the purpose of protecting buildings, parking lots, and facilities. (In front of entrance doors, in front of shutters, at ramp entrances, etc.) We also have a track record in leak prevention and fire suppression equipment. *For more details, please contact us or download the PDF to view. - Flood and water damage measures for businesses, factories, and warehouses - Disaster prevention and BCP measures for municipalities, hospitals, and commercial facilities - Flood prevention equipment for underground parking lots and store entrances - Initial response as a simple water stop system in emergencies
Detailed information
-
【Mechanism of Stopping Water】 It uses the water pressure from the water on the main body to hold it back. Even a single piece will not fall over. Please watch the video for a demonstration.
