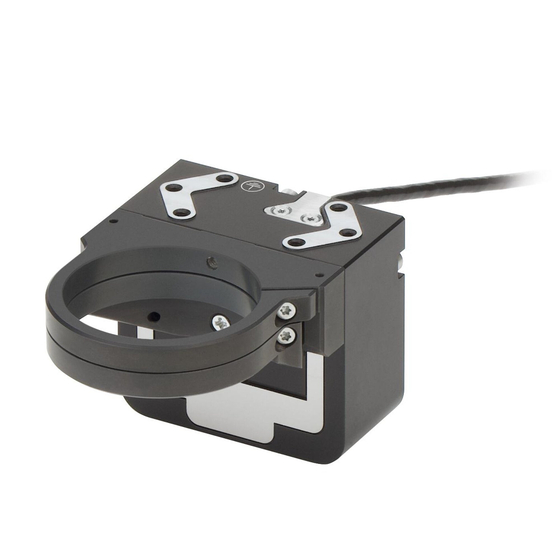

Sub-nanometer resolution, focus scanner P-725.xCDE2 with a maximum movement of 800 µm.
In the field of nanotechnology, high-resolution and stable focus position control is required for the observation and evaluation of nanoscale structures. The P-725.xCDE2 PIFOC is a focus scanner for objective lenses that features a maximum travel range of 800 µm (depending on the model) and sub-nanometer resolution (when used with the appropriate controller). It achieves smooth Z-axis motion without friction or backlash through a piezo actuator and flexure guide mechanism. It is suitable for focus adjustment and Z-scan applications at the nanoscale in microscopy systems. 【Application Scenarios】 - Z-scanning in confocal microscopy - Focus position control in multiphoton microscopy - Height adjustment in semiconductor wafer inspection - Precise focus control during the observation of nanostructures 【Benefits of Implementation】 - Sub-nanometer resolution focus position control - High reproducibility motion without backlash - Wide Z travel range of up to 800 µm (depending on the model) - Flexure guide structure with no wear parts
Inquire About This Product
Related Videos
basic information
**Features** - Stroke: 100µm, 400µm, 800µm - Built-in capacitive sensor - Optimal for high-dynamics operation due to high rigidity - Flexibility of cables - Wide range of installation methods **Our Strengths** Based on over 50 years of experience at our headquarters in Germany and 30 years of experience in our Japanese subsidiary, we provide the best positioning solutions tailored to our customers' needs. We offer a wide product lineup including piezo stages, as well as peripheral equipment such as granite bases, and can also propose complex systems.
Price range
Delivery Time
Applications/Examples of results
- Various types of microscopes (confocal, light sheet, super-resolution, two-photon, etc.) - 3D imaging - Screening - Interferometric measurement devices - High-precision measurement - Autofocus systems - Biotechnology - Semiconductor inspection, etc.
Line up（3）
| Model number | overview |
|---|---|
| P-725.1CDE2 | PIFOC piezo nanofocusing system for long travel ranges and fast step-and-settle, 100 µm, capacitive sensors, D-sub connectors |
| P-725.4CDE2 | PIFOC piezo nanofocusing system for long travel ranges and fast step-and-settle, 400 µm, capacitive sensors, D-sub connectors |
| P-725.8CDE2 | PIFOC piezo nanofocusing system for long travel ranges and fast step-and-settle, 800 µm, capacitive sensors, D-sub connectors |
