Piezo chip/tilt platform achieving high-angle control of ±35 mrad and fast response.

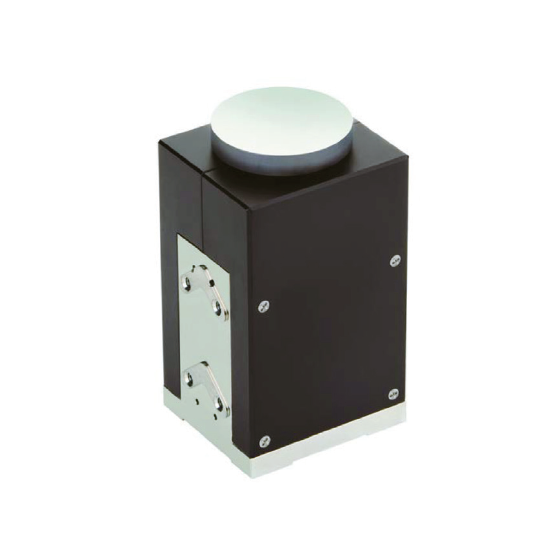

The S-335 Chip/Tilt Piezo Platform is a high-performance stage that achieves both large deflection angles and high dynamic response. It enables high-precision angle control without friction or backlash through piezoelectric elements, and realizes equivalent high performance with a two-axis parallel kinematics design. It is ideal for applications such as microscope scanning, high-speed imaging, and beam steering, supporting stable and high-precision operation. For detailed performance, please refer to the catalog. 【Application Scenes】 - Laser scanning microscopy - High-speed sample scanning and optical imaging - Beam steering/scanning control - Image processing/beam stabilization devices 【Benefits of Implementation】 - Achieves a wide scanning range with ±35 mrad high angle control - Enables high-speed step and settle due to high dynamic performance - High reliability with high-precision angle control without friction or backlash
Inquire About This Product
basic information
【Features】 - Chip/Tilt angle of 35 mrad, optical deflection angle of 70 mrad (up to 4°) - High linearity through strain sensors - High resonance frequency for dynamic motion and fast step-and-settling - Improved dynamics through parallel kinematic design - Capable of large deflection angles despite compact packaging 【Our Strengths】 Based on precision control technology cultivated over more than 50 years at our headquarters in Germany, we provide piezo stages and actuators adopted by research institutions and equipment manufacturers worldwide. With a rich lineup and technical expertise, we propose optimal solutions to meet our customers' needs.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■ Image processing ■ Interlacing, dithering ■ Laser scanning / beam steering ■ Optics ■ Optical filters / switches ■ Scanning microscopy, etc. *For more details, please refer to the PDF document or feel free to contact us.
