For high-precision scanning with optical microscopes. The PICMAWalk drive achieves both sub-nanometer resolution and high generation power.

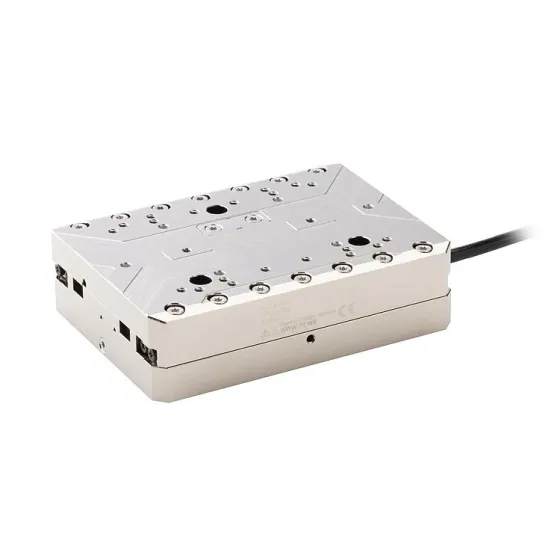

In optical microscopy, high magnification observation and wide-range scanning require positioning accuracy at the nano to sub-nanometer level and high stability. Particularly for long-term observation and high-resolution imaging, a high-rigidity stage that minimizes the effects of vibration and drift is essential. The N-332 addresses these challenges with its PICMAWalk drive. It is a piezo linear stage that achieves high output, long stroke, and sub-nanometer resolution in a high-dimensional manner. It enhances stability during microscopic observation and is ideal for optical microscope systems that require high-precision sample positioning and automatic scanning. 【Application Scenes】 - High-precision scanning in optical microscopy - Sample positioning in high magnification observation - Confocal microscope systems - Precise alignment of biological samples 【Benefits of Implementation】 - Compatible with vacuum applications - High-precision positioning with sub-nanometer resolution - Stable sample holding due to high output - Combination of long stroke scanning and high precision - Self-locking when power is off - High reproducibility and long-term stability
Inquire About This Product
Related Videos
basic information
【Features】 - Travel range: 25mm and 50mm types - 75 N active force - 3 nm minimum incremental motion - Self-locking when powered off - Multi-axis setup compatible: XY, XZ, XYZ - Vacuum compatible 【Our Strengths】 Based on precision control technology cultivated over more than 50 years at our headquarters in Germany, we provide piezo stages and actuators adopted by research institutions and equipment manufacturers worldwide. With a rich lineup and technical expertise, we propose optimal solutions to meet our customers' needs.
Price range
Delivery Time
Applications/Examples of results
Application Fields - Scanning Electron Microscopes (SEM) and Transmission Electron Microscopes (TEM) in life sciences and semiconductor manufacturing - Super-resolution microscopy, particularly 4Pi microscopy - Nanoindentation
