Suppresses reattachment after cleaning, capable of handling cleaning, rinsing, and drying with one machine.

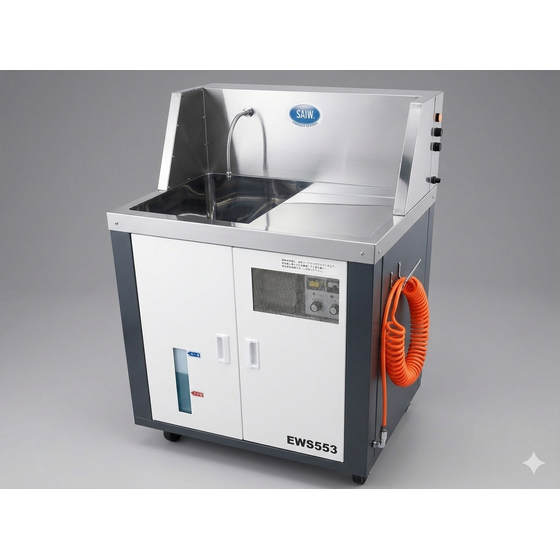

After cleaning, oil returns to the workpiece, and rinsing and drying after cleaning can be labor-intensive—this is a multifunctional cleaning unit suitable for such environments. The EWS553 features a unique mechanism that washes away dirt that has been removed by ultrasonic waves using a water jet stream, and by circulating floating oil, it allows for cleaning that takes into account recontamination during workpiece retrieval. Additionally, it supports brushing cleaning, targeted cleaning and rinsing with a water gun, and drying finishing with an air gun, making it versatile for use from cleaning to finishing with a single unit. It is suitable for degreasing and cleaning of machined parts, molds for forming, and three-dimensional processed workpieces.
Inquire About This Product
basic information
Model: EWS553 Cleaning Solution: Super Alkaline Ion Water (SAIW) Ultrasonic Frequency: 28kHz Ultrasonic Output: 100W to 600W Cleaning Tank Dimensions: W500×D500×H300mm Maximum Dimensions of Items to be Cleaned: 500×500×280mm Maximum Weight of Items to be Cleaned: 20kg Storage Tank Capacity: 130L Device Dimensions: W1000×D700×H1350mm Power Supply: AC200V 10A approximately 600W / AC100V 15A approximately 1.35kW Features: UFB, heater, jet cleaning, circulation cleaning, water gun, air gun equipped
Price information
Reference price: Individual estimates based on specifications and included components. *We will propose the optimal specifications according to the items to be cleaned and the method of operation.
Price range
P5
Delivery Time
※Approximately 2 to 3 months after the order is received (subject to change depending on specifications and included components). *Please contact us for details.
Applications/Examples of results
■Degreasing and cleaning of machined parts - Removal of oils, fats, and metal powders → Consideration for stabilizing cleaning quality and preventing re-adhesion ■Cleaning of molds and tools for molding - Supports brushing, targeted cleaning, and warm water cleaning → Ability to differentiate cleaning methods according to the state of dirt ■Cleaning of three-dimensional processed workpieces - Composite cleaning using ultrasonic, jet flow, and UFB → Contributes to improved cleaning efficiency for complex-shaped workpieces ■Finishing process after cleaning - Rinsing with a water gun and drying with an air gun → One machine handles everything from cleaning to finishing
