Reviewing the burden of hand wiping, cleaning, and drying, contributing to labor reduction and quality stability in the sheet metal process.

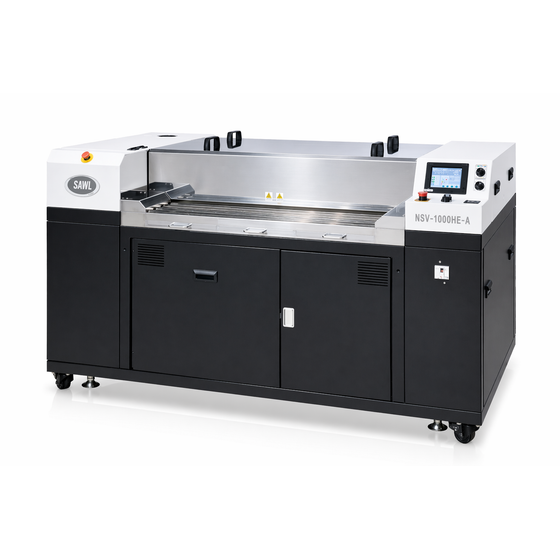

Amid ongoing labor shortages, are you spending too much time on manual degreasing and cleaning/drying processes for sheet metal work? The MSW-1000HE-A is a sheet metal cleaning machine that can automatically handle both sides' cleaning and drying in one pass, simply by setting the sheet metal and press-processed products. It cleans away oil, dust, and fingerprint stains after processing, helping to prevent contamination in the next process. By reevaluating the cleaning process, which tends to rely on manual labor, it contributes to reducing the workload, improving process efficiency, and stabilizing cleaning quality. If you are considering labor-saving and process improvement for sheet metal cleaning, please feel free to consult us.
Inquire About This Product
basic information
Model: MSW1000HEA Application: Degreasing and drying of sheet metal Cleaning Method: SAIW spray cleaning Features: Simultaneous cleaning on both sides, drying finish, speed adjustment (minimum 30 seconds) Applicable Work Size: 90mm or more in the direction of travel, 1,000mm or less in the lateral direction Applicable Plate Thickness: 0.5 to 9.0mm Dimensions: W1,900 × D1,040 × H1,140mm Power: 3-phase 200V (13kVA) Power Supply Capacity Reference: 30 to 50A Operation: Touch panel adopted Others: Equipped with casters, can be fixed with stoppers and lift-up mechanism
Price information
Reference price: 10 million yen range (varies by model and specifications)
Price range
P7
Delivery Time
※Approximately 3 months after the order is received (varies depending on model and specifications).
Applications/Examples of results
■ Degreasing and cleaning of sheet metal and press-processed products - Removal of oil, dust, and fingerprint stains after processing → Contributes to preventing contamination in the next process and stabilizing cleaning quality ■ Cleaning immediately after the blanking process - Cleaning is performed before bending, welding, and assembly → Contributes to reducing cleaning labor and improving productivity ■ Cleaning of workpieces before and after automation and robotization - Addresses the issue of workpieces sticking together due to oil → Contributes to reducing pickup issues and improving process efficiency ■ Labor-saving in manual degreasing - Switching from manual wiping with thinner to machine cleaning → Reduces work burden, improves work environment, and decreases quality variation ■ Addressing suction cup marks and oil inside tapped holes - Tackles the cleaning challenges of oil remaining on suction cup marks and tapped areas → Contributes to reducing manual work and decreasing complaints
catalog（1）
Download All Catalogs
Company information
E-Plan Co., Ltd. is dedicated to being kind to people and keeping the natural environment clean. E-Plan provides advanced cleaning technologies that are gentle on both people and nature, developing and selling purification systems that regenerate various types of wastewater generated from cleaning in various industries (such as metals, LCDs, lenses, chemicals, cosmetics, pharmaceuticals, food, and livestock), as well as cleaning machines that do not pollute the environment. Additionally, E-Plan Co., Ltd. manufactures and sells a colorless and odorless electrolyzed water called Super Alkaline Ion Water "e Wash," which contains 99.9% water components and does not include synthetic chemicals such as surfactants, achieving powerful cleaning capabilities while being safe and environmentally friendly.
