Agilex 5 FPGA SOM Second Edition. Low-cost and small Comet A13 SoM.

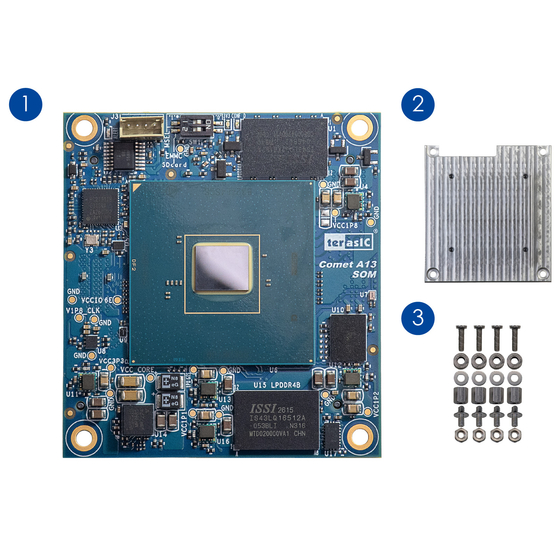

Terasic's second installment of the Agilex 5 SOM series. The Comet A13 SOM (P0823, P0845) is an embedded module that features the Agilex 5 E SoC series FPGA, 3 banks of 32-bit wide DDR4 (totaling 12GB), a system management section including power supply, and two 400-pin SEAM8 connectors, all in a size of 60mm x 55mm. Terasic has an overwhelming track record of mass-producing boards equipped with higher-end Agilex 7 and supplying numerous Altera FPGA-based boards for a long time. The Comet SOM also promises long-term supply for over 10 years. For inquiries, please contact Tateno Denko Co., Ltd. at sales@dsp-tdi.com.
Inquire About This Product
basic information
System: FPGA: A5ED013BB32AE4S Size : 60mm x 55mm 191 HVIO (3.3V x16, 1.8/2.5/3.3V x175) 72 HSIO (up to 12 LVDS RX and 24 LVDS TX/RX) 48 HPS IO 4 Transceivers Interface: Two SEAM8 Connectors (6x50 pin) FPGA Side: LED x1, KEY x1、 Fixed 50 /100MHz Clock LPDDR4-B: 2GB LPDDR4(Only Rev.A) 191 HVIO and 72 HSIO to SEAM8 connector HPS Side: LPDDR4-A: 4GB LPDDR4 32bit, Shared with FPGA 48 HPS IO to SEAM8 connector 8GB(Expandable) eMMC + eMMC SEL switch
Price range
Delivery Time
Applications/Examples of results
Comet A13 SOM and Comet A65 SOM are primarily used for embedded applications. Please consider Terasic products, which have a proven track record of long-term stable supply.
