Injection cleaning machine for small to medium-sized processed parts.

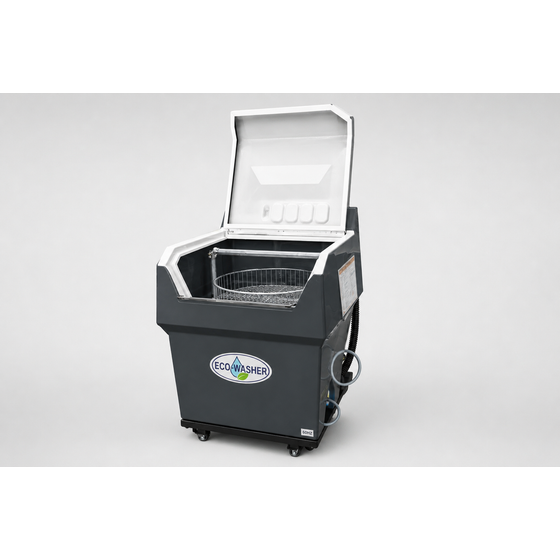

ECO-WASHER RM Series (RM50/RM60)
Efficiently streamline daily parts cleaning with a front-opening and basket-insertion design.
The ECO-WASHER RM series is a spray-type cleaning machine suitable for cleaning small to medium-sized processed parts. Its structure, which opens widely at the front, makes it easy to load and unload workpieces, thereby improving the efficiency of daily cleaning tasks. Because it uses a basket loading system, it is easy to clean multiple parts at once, making it suitable for environments where repeated cleaning occurs. The spray cleaning from above, sides, and below cleans dirt such as machining oil and metal dust that adheres to the surface of the parts. It helps reduce cleaning inconsistencies and stabilize cleaning quality. Super alkaline ionized water (SAIW) can be used as the cleaning solution, which leads to a reduction in detergent usage and improvement of the working environment. It is recommended for the efficient cleaning of cutting processed parts, aluminum parts, sheet metal processed parts, jigs and tooling, and complex-shaped parts for everyday cleaning tasks.
Inquire About This Product
basic information
【Main Specifications】 ■RM50 - Target: For small to medium-sized processed parts - Cleaning dimensions: 500Φ×175H mm - Maximum weight: 50kg - Tank capacity: 90L - Pump discharge rate: 100L/min, 0.29MPa - Heater: 3kW - External dimensions: W720×D795×H965mm ■RM60 - Target: Also compatible with slightly larger processed parts - Cleaning dimensions: 620Φ×300H mm - Maximum weight: 100kg - Tank capacity: 150L - Pump discharge rate: 180L/min, 0.30MPa - Heater: 5kW - External dimensions: W950×D950×H1,160mm 【Common Features】 - Front opening structure - Basket loading type - All-direction spray cleaning - Compatible with Super Alkaline Ion Water (SAIW) - Suitable for repeated cleaning of small to medium-sized processed parts
Price information
Reference price: From around 1 million yen (varies depending on model and specifications) *We will propose the optimal model based on the items to be cleaned, processing volume, and specifications.
Price range
P5
Delivery Time
※Approximately 2 to 3 months after the order is received. *This may vary depending on the model, specifications, and stock availability. Please contact us for more details.
Applications/Examples of results
■Cleaning of machined parts - Cleaning of cutting oils and metal powders → Contributes to preventing contamination in subsequent processes and stabilizing cleaning quality ■Cleaning of aluminum parts - Cleaning of oil stains and adhered dirt after processing → Improves appearance quality and enhances cleaning efficiency ■Cleaning of sheet metal processed parts - Batch washing of small to medium-sized workpieces → Reduces the burden of manual washing and shortens work time ■Cleaning of jigs and tooling - Cleaning of jigs and tools used repeatedly → Enhances efficiency of routine maintenance tasks ■Cleaning of complex-shaped parts - Cleaning of parts with irregularities and holes → Supports reduction of cleaning unevenness through all-direction spraying
catalog（2）
Download All Catalogs
Company information
E-Plan Co., Ltd. is dedicated to being kind to people and keeping the natural environment clean. E-Plan provides advanced cleaning technologies that are gentle on both people and nature, developing and selling purification systems that regenerate various types of wastewater generated from cleaning in various industries (such as metals, LCDs, lenses, chemicals, cosmetics, pharmaceuticals, food, and livestock), as well as cleaning machines that do not pollute the environment. Additionally, E-Plan Co., Ltd. manufactures and sells a colorless and odorless electrolyzed water called Super Alkaline Ion Water "e Wash," which contains 99.9% water components and does not include synthetic chemicals such as surfactants, achieving powerful cleaning capabilities while being safe and environmentally friendly.
