Ion exchange membrane electrolysis cell using conductive diamond electrodes

Ion exchange membrane electrolytic cell that achieves both high-purity oxidant production and gas separation.

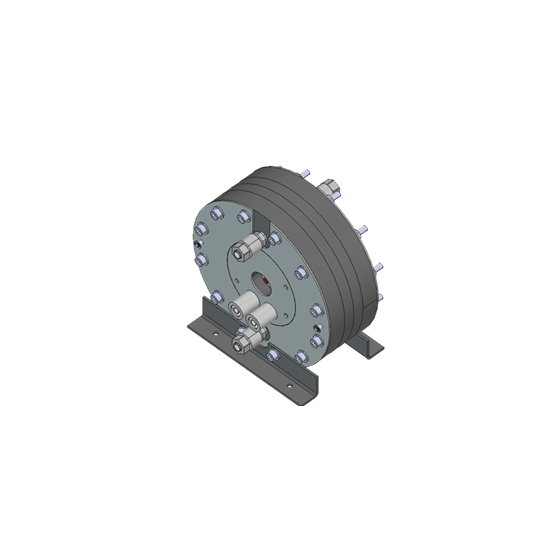

This product is an ion exchange membrane electrolytic cell that reliably separates the anode chamber and cathode chamber using a cation exchange membrane. It employs a φ150mm BDD (Boron-Doped Diamond) electrode, enabling stable oxidation reactions even under high current densities. The exterior is made of PTFE, providing high durability even in strong acid environments such as sulfuric acid. Since the anode and cathode are independent, gases generated from each electrode can be safely collected separately. By simply combining it with your existing DC power supply, pump, and beaker, you can easily generate oxidants such as electrolytic sulfuric acid and persulfate. It supports reproducible electrolysis experiments, from small-scale tests for research and development to condition assessments. It is suitable for a wide range of applications including CFRP recycling, surface treatment, oxidant generation, and material evaluation.
