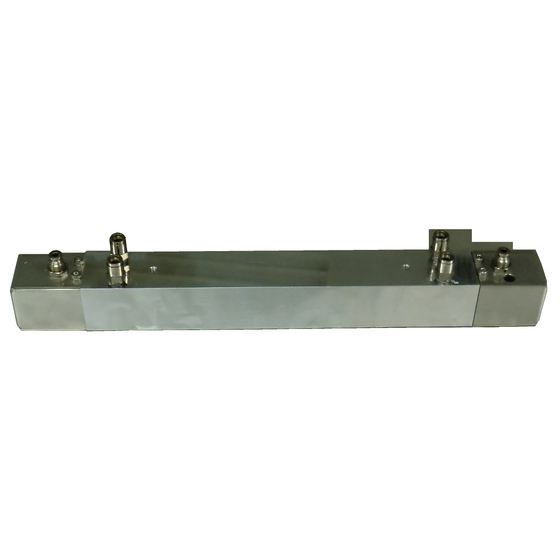

Small Parallel Beam Halogen Line Heater HLH-40 Series
Heat-tech Halogen Line Heater HLH-40
It can be heated to 900°C in a band shape. It can also be installed in narrow spaces.
Features of HLH-40 1) Can be heated up to 900°C in a strip The high-performance halogen line heater HLH-40 is a strip infrared heating device that uses rod-shaped halogen lamps. It has a short heating time and can heat in a strip with a parallel mirror width of 40mm and parallel light (focal distance ∞). 2) High output in a compact size It uses a high-output 5kW halogen lamp and has been miniaturized. The height of the parallel light mirror is 40mm, allowing it to be installed in narrow spaces. 3) It is a higher model than HLH-35 It can be controlled at intervals of 40mm, making it ideal for surface heating with multiple units lined up.
Inquire About This Product
basic information
Total length 380mm Width 40mm Focal length 20mm Voltage output: 3 types 200V-2KW, 200V-3KW, 200V-5KW
Price range
Delivery Time
Applications/Examples of results
Laminated plastic reinforcement of hardened glass Adjustment of metal hardening Constant temperature maintenance of molds Preheating of metal materials - countermeasures for shrinkage in drawing presses Aluminum vapor deposition Thermal processing of semiconductor wafers Drying and curing of wire insulation Heat resistance testing of color filters Thermal processing of semiconductor wafers Liquid (chemical) heating heater Thermal processing of plate glass Hardening of watch hands (blue steel) Heat resistance testing of materials in the aerospace industry
Detailed information
-
Adjustment of Metal Hardening 《 Issues 》 Temperature management during annealing was difficult. 《 Improvement Points 》 The casting surface was heated with a halogen line heater. It reaches the maximum temperature in 5 seconds, preventing the temperature drop of the casting. Previously, idling took 30 minutes, so the idling time has been reduced to zero. Link to product description site https://www.heat-tech.biz/products-hlh/hlh-ss/21444.html
-
Temperature Maintenance of Molds 《 Issues 》 We were troubled by changes in finishing accuracy due to temperature drift of the molds. 《 Improvement Points 》 We preheated the molds with a halogen line heater. It reaches the maximum temperature in 5 seconds, allowing for precise temperature management. Previously, we spent 30 minutes on idling, so the idling time has been reduced to zero. Link to product description site https://www.heat-tech.biz/products-hlh/hlh-ss/21444.html
-
Preheating of Metal Materials - Measures Against Sink Marks in Stamping Press 《 Issues 》 There were no effective measures against sink marks in the stamping press. 《 Improvement Points 》 Preheating was done using a halogen line heater. It reaches the maximum temperature in 5 seconds, allowing for immediate action from startup. Previously, idling took 30 minutes, so the idling time has been reduced to zero. Link to product description site https://www.heat-tech.biz/products-hlh/hlh-ss/21444.html
-
Aluminum deposition 《 Issues 》 There were no good heaters capable of aluminum deposition in a vacuum. 《 Improvement Points 》 Heated with a halogen line heater. It reaches the maximum temperature in 5 seconds, allowing for the maintenance of cycle time. Previously, idling took 30 minutes, so the idling time has been reduced to zero. Link to product description site https://www.heat-tech.biz/products-hlh/hlh-ss/21444.html
-
Semiconductor Wafer Heat Treatment Process 《 Issues 》 There were no good methods for heating silicon wafers in a vacuum. 《 Improvement Points 》 Heated with a halogen line heater. It reaches the maximum temperature in 5 seconds, allowing for the maintenance of cycle time. Previously, idling took 30 minutes, so the idling time has been reduced to zero. Link to product description site https://www.heat-tech.biz/products-hlh/hlh-ss/21444.html
-
Heat Resistance Test of Color Filters 《 Issues 》 There was a need to shorten the development time for new color filters. 《 Improvement Points 》 A parallel light type halogen line heater was used. Since it is a halogen heating type, heating was easy and accurate. Successfully reduced the testing time. Link to product description site https://www.heat-tech.biz/products-hlh/hlh-ss/21444.html
-
Chemical Solution Heating Heater 《 Issues 》 There was no good heater that could heat chemical solutions at high speed. 《 Improvement Points 》 Three halogen line heaters were combined to create a triangular space, through which a quartz tube was passed. This allowed for a transition from batch processing to line processing. With three-sided irradiation, heating could be done uniformly. Furthermore, using three units increased the output, enabling the heating of high-speed fluids. Link to product description site https://www.heat-tech.biz/products-hlh/hlh-ss/21444.html
-
Heat Treatment of Plate Glass 《 Issues 》 We were looking for a replacement method for the heating treatment of plate glass from gas heating. 《 Improvement Points 》 Heat treatment of plate glass became possible with halogen line heaters, successfully replacing gas heating. Link to product description site https://www.heat-tech.biz/products-hlh/hlh-ss/21444.html
-
Heat treatment of watch hands (blue steel) 《 Issues 》 The temper color changes with heating temperature, so we were looking for a heating method that allows for temperature control. 《 Improvement Points 》 By controlling the temperature, the differences in color were reduced and the yield improved. Link to product description site https://www.heat-tech.biz/products-hlh/hlh-ss/21444.html
