Ultraviolet Point Irradiator Lab Kit LKUVP-30 + UVPC
Heat-tech UV Point Irradiator Lab Kit LKUVP-30 + UVPC
Focal diameter Φ13 allows for easy UV point irradiation!
◆ Features ◆ It comes as a kit, making it easy to use the ultraviolet light source. It can emit ultraviolet light at 375nm. It can easily reproduce ultraviolet irradiation with a diameter of Φ13. With a manually adjustable power supply, you can easily adjust the irradiation amount by changing the current. With a manual lift platform, you can easily adjust the irradiation diameter.
Inquire About This Product
basic information

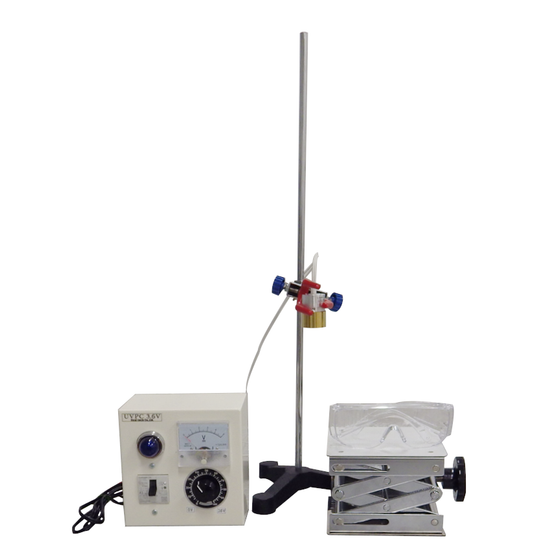

Lab Kit Assembly Example (*The lab kit is delivered with individual parts.) **Lab Kit Packaged Products** Manual Variable Power Supply Cable Manual Variable Power Supply Controller UVPC-3.6V Can be adjusted from 0 to 25mA using a dial. By adjusting the current, the power can be varied, allowing for adjustment of the irradiation output. Test Stand Irradiator Fixing Bracket Ultraviolet Point Irradiator UVP-30/f15/3.6v-25mA/375nm Emits ultraviolet light with an output of 3.6V-25mA. Manual Elevating Platform The platform surface is 100mm x 100mm, initial height 54mm, maximum height 134mm, variable height of 80mm. The height can be adjusted by 80mm using a 16-turn knob, achieving an accuracy of 0.5mm. Ultraviolet Protective Glasses Allows for safe visual confirmation of the irradiation point.
Price range
Delivery Time
Applications/Examples of results
Irradiation of ultraviolet curing resin Tire crack testing Photocatalyst testing UV cut glass transmittance testing Accelerated weather resistance test of color steel sheets Comparative test by partial sterilization of culture medium Weather resistance test of resin plates Weather resistance test of coatings Drying of UV printing Reading of transparent UV ink Ultraviolet weeding effect Ultraviolet surface modification of resin substrates Ultraviolet (UV) cleaning of glass lenses Synthesis of vitamin D by ultraviolet irradiation Ultraviolet fluorescence method for sulfur dioxide Light source for total protein quantification by spectrophotometry Quantification of uranium ore by ultraviolet fluorescence method Light source for thin layer chromatography
