Lighting for Phosphor Excitation Equipped with High-Power UV LEDs

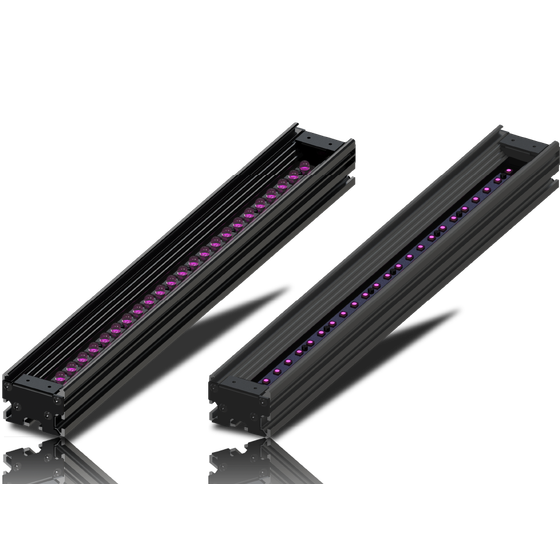

Lighting equipped with high-output UV LEDs optimized for phosphor excitation. The lineup includes Long Type and Short Type models, allowing you to choose the irradiation distance. Standard wavelengths are 365 nm, 385 nm, 395 nm, and 405 nm, with other wavelengths available upon request. The IDBC-CH Series of high-output UV bar lights, featuring a new design with enhanced functionality, offers four emission wavelengths ranging from 365 nm to 405 nm in 10-nm increments; two types—the Long Type with a narrow-angle beam pattern and the Short Type with a wide-angle beam pattern; and 64 variations across eight sizes with light-emitting surface lengths ranging from 75 mm to 600 mm in 75-mm increments. Additionally, UV-compatible diffuser plates and transparent plates can be attached.
Inquire About This Product
basic information
*For more details, please visit the related links or contact us.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
Lighting for Phosphor Excitation
Detailed information
-
Transparent and diffuser panels are easy to install and replace
Line up（16）
| Model number | overview |
|---|---|
| IDBC-CH75S-UV | High-output UV bar lights with a housing length of 109 mm and a slightly wide-angle beam (Short type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH75L-UV | High-output UV bar lights with a housing length of 109 mm and a slightly narrow beam angle (Long type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH150S-UV | High-output UV bar lights with a housing length of 184 mm and a slightly wide-angle beam (Short type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH150L-UV | High-output UV bar lights with a housing length of 184 mm and a slightly narrow beam angle (Long type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH225S-UV | High-output UV bar lights with a housing length of 259 mm and a slightly wide-angle beam (Short type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH225L-UV | High-output UV bar lights with a housing length of 259 mm and a slightly narrow beam angle (Long type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH300S-UV | High-output UV bar lights with a housing length of 334 mm and a slightly wide-angle beam (Short type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH300L-UV | High-output UV bar lights with a housing length of 334 mm and a slightly narrow beam angle (Long type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH375S-UV | High-output UV bar lights with a housing length of 409 mm and a slightly wide-angle beam (Short type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH375L-UV | High-output UV bar lights with a housing length of 409 mm and a slightly narrow beam angle (Long type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH450S-UV | High-output UV bar lights with a housing length of 484 mm and a slightly wide-angle beam (Short type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH450L-UV | High-output UV bar lights with a housing length of 489 mm and a slightly narrow beam angle (Long type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH525s-UV | High-output UV bar lights with a housing length of 559 mm and a slightly wide-angle beam (Short type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH525L-UV | High-output UV bar lights with a housing length of 559 mm and a slightly narrow beam angle (Long type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH600S-UV | High-output UV bar lights with a housing length of 634 mm and a slightly wide-angle beam (Short type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
| IDBC-CH600L-UV | High-output UV bar lights with a housing length of 639 mm and a slightly narrow beam angle (Long type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the emission wavelength. |
