Illumination for Phosphor Excitation Equipped with High-Power UV LEDs

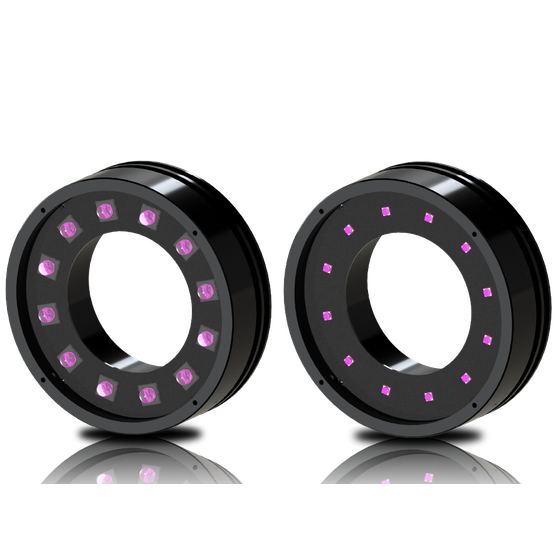

Illumination equipped with high-output UV LEDs optimized for phosphor excitation. The lineup includes Long Type and Short Type models with selectable irradiation distances. Standard wavelengths are 365 nm, 385 nm, 395 nm, and 405 nm, with other wavelengths available upon request. High-output UV ring Illumination with a new, improved design The IDHRC series offers 16 models: four types with emission wavelengths ranging from 365 nm to 405 nm in 10-nm increments; two types—the Long Type with a narrow-angle beam and the Short Type with a wide-angle beam; and two sizes—φ65 and φ100. Additionally, UV-compatible diffuser plates and transparent plates can be attached.
Inquire About This Product
basic information
*For more details, please visit the related links or contact us.
Price information
Please contact us.
Delivery Time
Applications/Examples of results
Lighting for Phosphor Excitation
Detailed information
-
Transparent and diffuser panels are easy to install and replace
Line up（4）
| Model number | overview |
|---|---|
| IDHRC-65S-UV | High-output UV ring illuminator with an outer housing diameter of Φ65 mm and a slightly wide-angle beam (Short type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the irradiation wavelength. |
| IDHRC-65L-UV | High-output UV bar lights with an outer housing diameter of Φ65 mm and a slightly angled beam (Long type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the irradiation wavelength. |
| IDHRC-100S-UV | High-output UV ring illuminator with an outer housing diameter of Φ100 mm and a slightly wide-angle beam (Short type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the irradiation wavelength. |
| IDHRC-100L-UV | High-output UV bar lights with an outer housing diameter of Φ100 mm and a slightly angled beam (Long type); the model number ends with -365 (365 nm), -385 (385 nm), -395 (395 nm), or -405 (405 nm) to indicate the irradiation wavelength. |
catalog（2）
Download All Catalogs
Company information
Raymac Inc. is engaged in the development of image processing and specialized lighting, as well as the development of FA systems and healthcare devices, and OEM/ODM for electronic and medical devices. "Brightening society with visible technology and understandable technology" We contribute to society by leveraging imaging technology, including LED lighting for image processing, and image processing technology that understands images from captured images. Although we are still a small company, we will continue to take steady steps forward, grounded in reality, towards the future. We will also strive to ensure the satisfaction of as many customers as possible.
