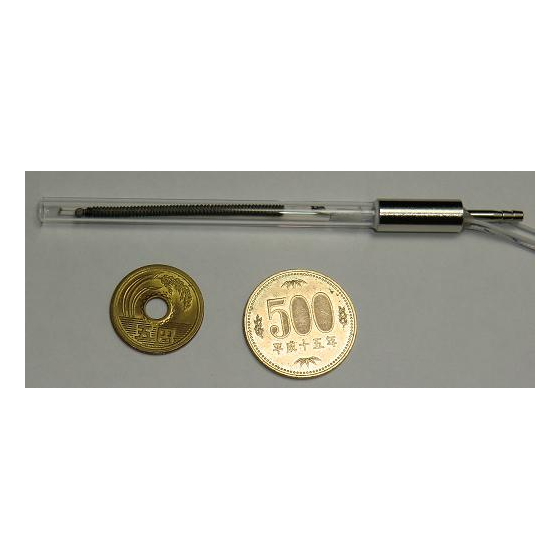

The heating tube is the size of a pencil with a diameter of 6 mm.
The heating tube is the size of a pencil with a diameter of φ6. Since the air pressure is weak, it is suitable for cream soldering on printed circuit boards. The tip is made of insulating ceramics, eliminating the risk of electrical damage due to mis-touching. The ABH-6□ has an opening of Φ4. The ABH-4D has a diameter of Φ3, which expands the opening by 1.8 times. Therefore, the air pressure is weakened to 1/1.8 = 55%. It is recommended when using the ABH-4D but wanting to reduce the air pressure.
Inquire About This Product
basic information
Heating tube diameter Φ6 For details, please check the website below https://www.heat-tech.biz/products-nh/nh-ss/nph-gj-gz/2746.html
Price range
Delivery Time
Applications/Examples of results
Cap seal Film shrink Re-dissolving hot melt Resin welding torch Heat sealing of paper packs Heat staking Heating and cutting of resin sheet materials Drying of coaters Drying of printed materials Drying of electric welding tubes Soldering of printed circuit boards Self-fusing of winding coils Deburring of resin molded products Heating of electron microscope samples Ignition source for burners Processing of grilled tofu End treatment of fibers Production of heated nitrogen gas Preheating of resin sheets Preheating of printed circuit boards Material surface analysis Operational testing of thermoswitches Partial heating of culture media Production of heated sterilizing air Thermal distortion testing of liquid crystals Heating of ammonia gas Seal peeling Heat shrink of lithium batteries Dehumidifying drying of resin pellets Drying of silicon wafers Heating and disinfecting liquids with bubbling Uniform heating of culture media Water removal and drying of metal films Water removal of glass bottles Replacement of gas in all-electric laboratories Drying of printed wire marks Aging of electronic components Adhesion of film and paper Drying of processing holes Internal drying of pipe products Prevention of double feeding and preheating of blank materials Water removal and drying of surface-treated steel plates Water removal and drying of engine blocks Rapid heating inside processing chambers
Detailed information
-
Soldering of printed circuit boards Issues Struggled to effectively soften the solder paste ⇒ Improvement point Solved the problem by using a super compact hot air heater for localized heating.
-
Fragrance Emission Test Issues No emission tests were conducted using hot air. ⇒ Improvement Points Conducted emission tests using a hot air heater, increasing the temperature in 1°C increments while controlling the airflow at 1 liter/min increments. This allowed for the measurement of residual effects.
-
Heating of Endoscopic Examination Gas Issues There was no small hot air heater capable of heating a small amount of examination gas. ⇒ Improvement Points Heated using a gentle breeze hot air heater ABH100v-50w/10PS. Since the examination gas can be preheated to the appropriate temperature, user responses have become smoother.
