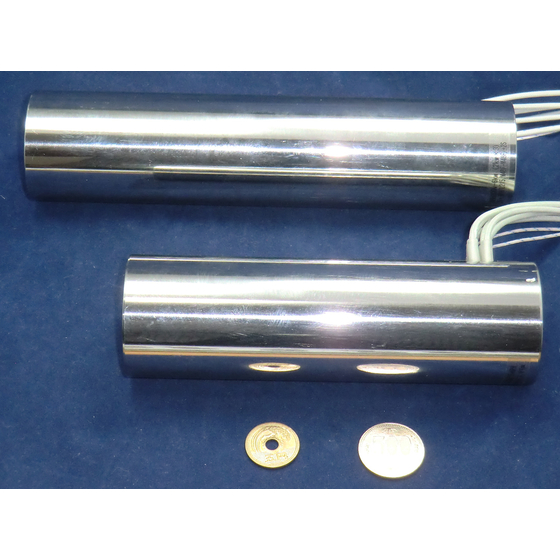

A heating element of 6kW to 18kW has been incorporated into a φ50 metal tube case.
It is a simple structure with threaded ends on a stainless steel pipe. Connection fittings can be manufactured by our company. TIG welding is also possible for the connection fittings. The ABH-50X6 is a higher model than the ABH-38X6. It incorporates a heating element of 6kW to 18kW into a φ50 metal tube case. Accurate temperature control can be achieved using a thermocouple at the outlet. Since the temperature of the heating element can be monitored, safety measures against overheating can be implemented. The tip has internal threads, allowing for various fittings to be attached. There are metal tube cases of various lengths available. For safety and health measures, the temperature of the heating element can be monitored to prevent overheating. Since it uses transparent gas for heating, it is ideal for photography and video recording.
Inquire About This Product
basic information
A heating element of 6kW to 18kW has been incorporated into a φ50 metal tube case. Please check the details on the website below: https://www.heat-tech.biz/products-nh/nh-ss/nph-gj-gz/856.html
Price range
Delivery Time
Applications/Examples of results
Cap seal Film shrink Re-dissolution of hot melt Resin welding torch Heat sealing of paper packs Heat crimping Heating and cutting of resin sheet materials Drying of coaters Drying of printed materials Drying of electric welding tubes Soldering of printed circuit boards Self-fusing of winding coils Deburring of resin molded products Heating of samples for electron microscopy Ignition source for burners Processing of grilled tofu End processing of fibers Production of heated nitrogen gas Preheating of resin sheets Preheating of printed circuit boards Material surface analysis Operational testing of thermoswitches Partial heating of culture media Production of heated sterilizing air Thermal distortion testing of liquid crystals Heating of ammonia gas Seal peeling Heat shrink of lithium batteries Dehumidifying drying of resin pellets Drying of silicon wafers Heating and disinfecting of liquids Uniform heating of culture media Water removal and drying of metal films Water removal of glass bottles Replacement of gas in all-electric laboratories Drying of printed wire marks Aging of electronic components Adhesion of film and paper Drying of processing holes Internal drying of pipe products Prevention of double feeding and preheating of blank materials Water removal and drying of surface-treated steel sheets Water removal and drying of engine blocks Rapid heating in processing chambers
Detailed information
-
Drying of metal parts after cleaning Issues There was no method to dry metal parts quickly, which was problematic. ⇒ Improvement Points A large-capacity hot air heater was used for high-temperature blowing. Work can be done in a short time, so the number of cleanings has increased. Residual water was evaporated with high heat, eliminating rust.
-
Hot Air Roasting of Coffee Beans Issues Until now, it has not been possible to roast evenly at the optimal temperature. ⇒ Points for Improvement Roasting was done with a hot air heater. The delicate temperature management of 180°C for first crack and 200°C to 230°C for second crack can now be easily controlled in 1°C increments. From light roast to dark roast, city roast, medium roast, and high roast can be easily achieved. Moreover, since the beans are automatically stirred by hot air and heated uniformly from all sides, the variation in roasting has decreased, increasing the product value. With the elimination of high-temperature burnt parts, the variation when ground has decreased, resulting in improved flavor. Additionally, there is a controller that can automatically control roasting time and hot air flow, making it easy to prototype.
-
Nitrogen Gas Concentration Device Issues There was no good method for concentration without oxygen, which was problematic. ⇒ Improvement Points Concentration was performed by directly blowing nitrogen gas onto the sample. Volatile solvents with low volatility, such as DMSO and water, could also be quickly removed by using heated nitrogen gas under reduced pressure. Since stainless steel and super engineering plastics were used, highly corrosive solvents could also be utilized.
