The gas can be heated to 1050°C.

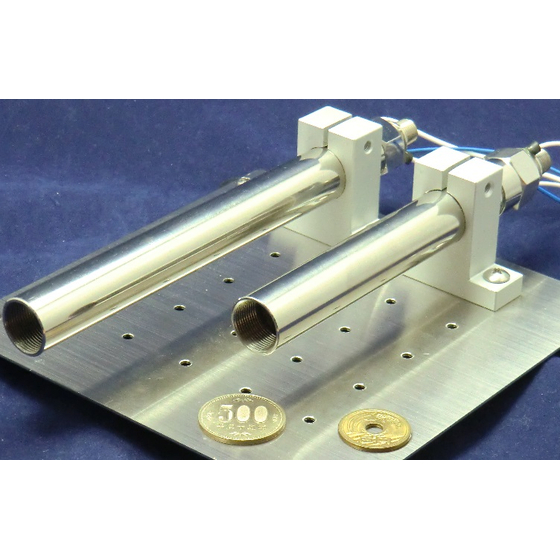

A 4.1kW heating element has been incorporated into a φ19 metal tube case. Please use it when a high-temperature airflow of 30 to 160 liters per minute is required. By using a thermocouple at the outlet, accurate temperature control can be achieved. Since the heating element temperature can be monitored, safety measures against overheating can be implemented. The tip is threaded either internally or externally, allowing various fittings to be attached. The ABH-19A can use a T-type nozzle to blow hot air like a brush. There are higher models than the ABH-19A, namely the ABH-22A and ABH-28A.
Inquire About This Product
basic information
A 4.1kW heating element has been incorporated into the φ19 metal tube case. Please check the details on the website below: https://www.heat-tech.biz/products-nh/nh-ss/nph-gj-gz/17963.html
Price range
Delivery Time
Applications/Examples of results
Cap seal Film shrink Re-dissolution of hot melt Torch for resin welding Heat sealing of paper packs Heat crimping Heated cutting of resin sheet materials Drying of coaters Drying of printed materials Drying of electric welding tubes Soldering of printed circuit boards Self-fusing of winding coils Deburring of resin molded products Heating of electron microscope samples Ignition source for burners Processing of grilled tofu End treatment of fibers Production of heated nitrogen gas Preheating of resin sheets Preheating of printed circuit boards Material surface analysis Operational testing of thermal switches Partial heating of culture media Production of heated sterilizing air Thermal distortion testing of liquid crystals Heating of ammonia gas Seal peeling Heat shrink of lithium batteries Dehumidifying drying of resin pellets Drying of silicon wafers Heating and disinfecting of liquids Uniform heating of culture media Water removal and drying of metal films Water removal of glass bottles Replacement of gas in all-electric laboratories Drying of printed wire marks Aging of electronic components Adhesion of film and paper Drying of processing holes Internal drying of pipe products Prevention of double feeding and preheating of blank materials Water removal and drying of surface-treated steel plates Water removal and drying of engine blocks Rapid heating within processing chambers
Detailed information
-
Hot Riveting and Heat Fitting Issues Using gas for heat riveting made it difficult to manage the gas pipes. ⇒ Improvement Points Changed to heat riveting using a hot air heater. Since it only requires power and instrument air, the process layout became more flexible.
-
Deburring of aluminum die cast Issues A grinder was used for deburring aluminum die cast. Hairline marks remained on the surface, preventing a glossy finish. ⇒ Improvement points Deburring was done by spot heating with a hot air heater. The gloss of the cast surface was secured.
-
Drying after hydraulic leak testing of pressure vessels Issues There was no method to quickly dry the test water, which was problematic. ⇒ Improvement points Used a large-capacity hot air heater with a high-temperature blower. This allowed for work to be done in a short time, increasing the number of tests conducted. By evaporating the residual water with high heat, rust formation was eliminated.
