Laser Stabilization PID Controller FSC | High-Speed Control Compatible

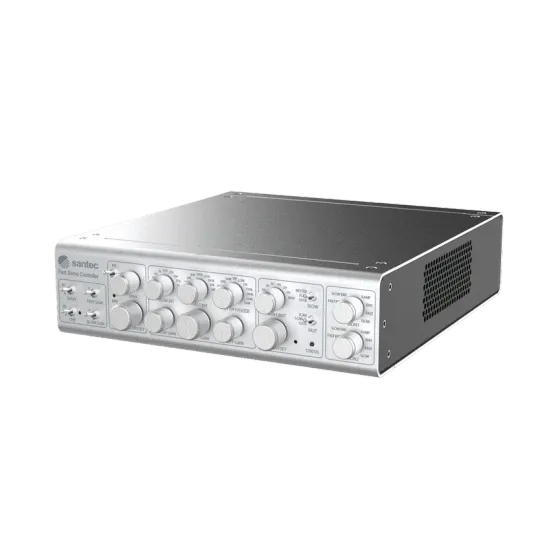

FSC
High-bandwidth PID control stabilizes the laser frequency with high precision. A high-speed feedback controller that achieves laser locking and narrow linewidth.
Ultra-fast feedback control for wideband laser stabilization. The FSC is a high-bandwidth PID servo controller designed for precise laser locking and narrowing of linewidth. By separating high-speed and low-speed loops in the feedback control, it achieves high-precision stabilization of laser frequency. Furthermore, its design emphasizes intuitive operability, allowing for rapid optimization of feedback parameters from the front panel, making it ideal for demanding stabilization applications.
Inquire About This Product
basic information
- Dual loop feedback control using high-speed loop (current) + low-speed loop (piezo) - High-precision stabilization through wideband PID control - Real-time adjustment support - Compatible with semiconductor lasers and external cavity lasers (ECDL) <Main Specifications and Features> - Supports high-bandwidth PID/PI²D control - Ultra-fast response through all-analog signal processing (propagation delay of 40ns) - FAST/SLOW parallel control loop configuration - Feedback control compatible with current and piezo - Supports high-bandwidth external modulation input - Built-in photodetector power supply (2 systems) <System Integration> The high-speed servo controller (FSC) achieves high-speed feedback control when combined with semiconductor laser systems and external drivers. It can be used in conjunction with laser controllers and photodetectors. <Related Products> - Digital Laser Controller dDLC | Laser Stabilization Control Supports laser frequency stabilization when combined with FSC. https://inst.santec.com/jp/products/quantum-instruments/electronics/ddlc
Price range
Delivery Time
Applications/Examples of results
- Laser frequency stabilization - Laser lock control - Cavity locking - Narrow linewidth banding - Beat note stabilization - Quantum technology research - Atomic physics experiments - High-resolution spectroscopic measurements - Precision photonics systems
Detailed information
-
<High-Bandwidth Dual Loop Control> Equipped with independent feedback loops for high-speed control (current) and low-speed control (piezo), it achieves high-precision stabilization.
-
<Laser Locking and Narrow Bandwidth> It supports resonator locking, narrowing of linewidth, and stabilization of the beat note, achieving high-precision frequency control.
-
<Highly Operable Front Panel> The dedicated knobs allow for real-time adjustment of key feedback control parameters.
-
<High system compatibility> It can be used in combination with various lasers that support current modulation and piezo control.
-
<Compatible with built-in photo detectors> It supports power supply to various compatible photo detectors, including amplification-type photo detectors (PDA).
