Advanced recycling processing of metal-plastic composites for the metal recycling industry.
Pailorinergy | Separation and recycling processing of metal and resin composites
Separating metal-resin composites that cannot be distinguished through thermal decomposition for resource recovery. Suitable for everything from mixed scrap to solar panels.
Composite materials that integrate metal and resin are waste that is difficult to dispose of due to high separation costs. This includes "mixed" scrap generated from manufacturing sites and back sheets of solar panels. Because different materials are combined, they do not fit into existing recycling flows and have been sent to landfills or exported overseas. Pyrolinergy thermally decomposes these composites, separating metals as solid residues and resin components into oil and carbonized materials. This allows for the recovery of composite waste that has been difficult to process, turning it into resources and achieving local and domestic recycling. ■ Features - Even integrated molded products of metal and resin, or products coated with resin, can be separated and recovered by material. This includes scrap that is labor-intensive to sort, such as cooler piping, appliance wires and harnesses, stabilizers, and circuit boards. - The back sheets of solar panels can also be thermally decomposed. The previously unestablished recycling flow for back sheets is broken down, separating carbonized residues containing rare metals like silver from resin-derived oils. - The separated resin components can be converted into oil and carbonized for recovery, allowing for reuse as resources (depending on the input materials). - For materials where disposal routes are shrinking due to strengthened export regulations and high recycling costs, we provide processing methods that can be completed domestically.
Inquire About This Product
basic information
■ Reference Specifications - Processing Targets: Composite scrap of metal and resin, solar panel back sheets, resin-coated products - Recovered Materials: Metals, rare metals, decomposition oil (monomers), carbides - Processing Method: Pyrolysis - Example Items: Circuit boards, terminals, cooler piping, appliance wires and harnesses, plating hangers, stabilizers, AC adapters, relay boxes, solar panel back sheets, etc.
Price range
Delivery Time
Applications/Examples of results
■ For such purposes - Unable to separate metals and resins, struggling with mixed scrap - Looking for a disposal solution for scrap containing resin, such as cooler piping, harnesses, and plated hangers - Seeking a disposal solution for composite materials like the backsheet of solar panels, where recycling flows are not established - Want to recover metal components from composite materials containing rare metals (such as silver) - Aiming to reduce disposal costs for composite waste due to rising industrial waste treatment costs - Want to secure domestic processing routes due to strengthened export regulations
Detailed information
-
Decomposition oil derived from PV backsheet.
-
Metal wiring used in PV back sheets.
-
Residue containing rare metals such as silver collected from the PV backsheet.
Company information

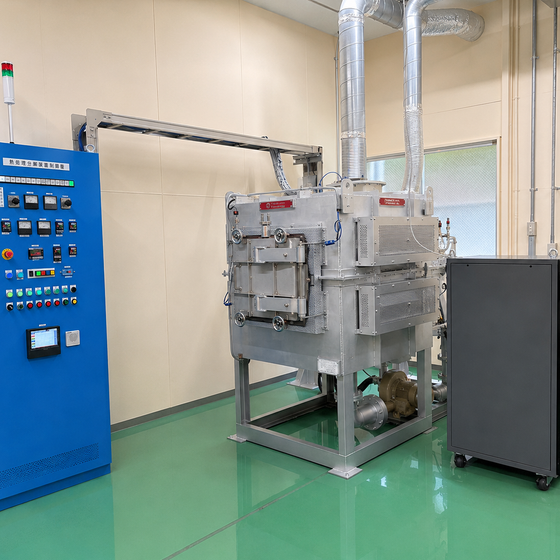

Our Mirai Connect Division offers the "PyroLynagy," a recycling plant for waste plastics developed in collaboration with Doryoku Co., Ltd. We contribute to the realization of a sustainable and better world, including the environmental goals of the "SDGs," which aim for economic development without environmental burden through a "circular economy," as well as achieving "carbon neutrality" by reducing greenhouse gas emissions to zero overall. Please feel free to contact us if you have any inquiries.
