Automotive Tooling and Equipment Parts: Holder | Precision Machining Case Study 1

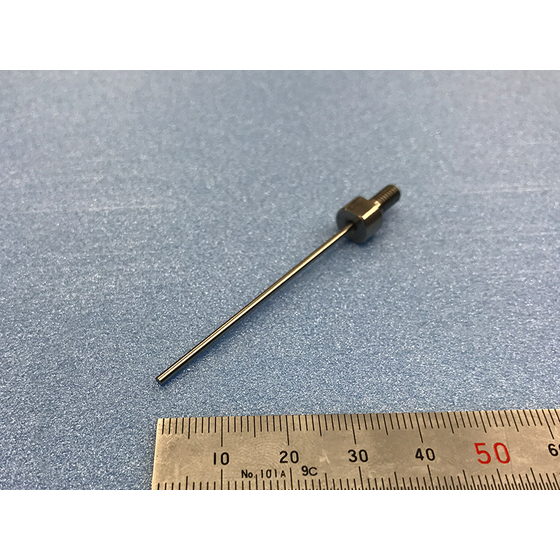

Examples of processing "holders" used to securely fix and hold various sensors in predetermined positions in automatic assembly lines and precision inspection processes for automotive parts.

If there are slight dimensional variations or surface distortions in the holder components incorporated into the equipment, it can lead to significant misalignment (such as runout) in the detection positions of the tools or sensors at the tip, directly resulting in quality issues on the mass production line. At our company, we utilize our exceptional precision cutting know-how to achieve stringent dimensional tolerances of ±0.001mm and an extremely smooth surface roughness of Rz 0.4μm. We provide dedicated components that can securely hold the target object at accurate angles and positions without any wobble, contributing to the high precision of our customers' equipment. For the material, we use stainless steel "SUS303," which has an excellent balance of rust resistance and machinability, widely adopted in factory automation (FA) environments. This time, we received an order for a small lot of "3 pieces" due to the renovation and update of existing equipment. Leveraging our production system specialized in custom processing of single items and small quantities, we delivered the products quickly with quality assurance through 100% inspection. 【Case Study】 ■Product Name: Holder ■Material: SUS303 ■Size: 40 × 10 mm ■Lot: 3 pieces For detailed processing examples and technical documents, please download the PDF or feel free to contact us.
