Parts cleaning machine | Automation of manual washing and degreasing processes
ECO-WASHER series
Set the work for automatic cleaning. Reduce handwashing time and minimize variations in the finish.

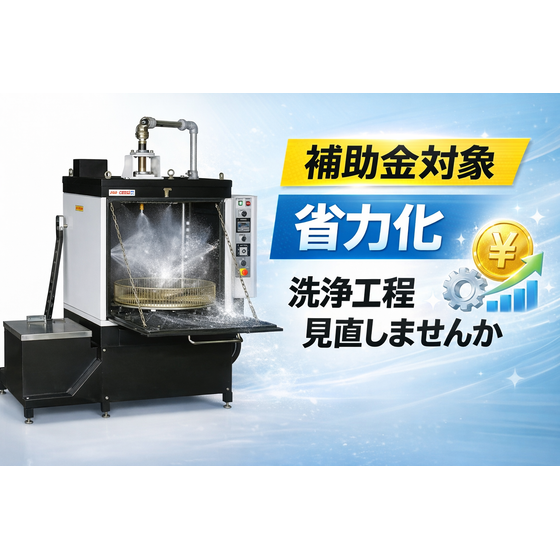

Are you washing processed parts one by one with a cloth or brush? The ECO-WASHER is a spray-type parts cleaning machine that automates the degreasing and cleaning tasks that were previously performed by humans, simply by setting the workpiece and starting the operation. It heats and sprays super alkaline ionized water (SAIW) to clean cutting and machined parts, as well as press parts, removing machining oils, metal dust, fingerprints, and other contaminants. During the cleaning process, operators do not need to be present at all times, allowing them to allocate the time previously spent on cleaning to other tasks. Additionally, by repeatedly cleaning under set conditions, it becomes easier to minimize variations in the finish that can occur with manual work. The cleaning sizes range from 630Φ×H400mm to 1370Φ×H850mm, with five models available. You can select a model based on the size, weight, and processing volume of the target workpieces. We recommend this for sites considering a review of hand wiping degreasing with solvents and organic solvents, reducing labor in cleaning operations, and standardizing parts cleaning.
Inquire About This Product
basic information
【ECO-WASHER Series】 - Jet-type parts cleaning machine - Cleaning solution: Super alkaline ionized water (SAIW) - Supports heated cleaning - Cleans machining oils, metal powders, fingerprint smudges, etc. - Compatible with mechanization of hand washing and wiping cleaning - Targets: machined parts, mechanical parts, pressed parts, jigs, equipment parts, etc. 【Main Lineup】 R60N | 630Φ×H400mm / Maximum 100kg R70N | 770Φ×H400mm / Maximum 150kg R90N | 970Φ×H550mm / Maximum 250kg R120N | 1170Φ×H550mm / Maximum 500kg R140N | 1370Φ×H850mm / Maximum 1000kg *Models are selected based on the cleaning target, weight, type of dirt, and processing volume.
Price information
Reference price: From around 1 million yen (varies depending on model and specifications) *We will propose the optimal model based on the items to be cleaned and the processing volume.
Delivery Time
※Approximately 2 to 3 months after the order is received (varies depending on model and specifications).
Applications/Examples of results
■ Cutting and machining parts - Cleaning parts contaminated with cutting oil, metal powder, etc. → Reduction of hand washing time and decrease in dirt transfer to the next process ■ Press and sheet metal processing parts - Cleaning parts contaminated with punch oil, fingerprints, and dirt from processing → Mechanization of degreasing work and stabilization of cleaning quality ■ Jigs and equipment parts - Cleaning jigs and equipment parts that require repeated cleaning together → Reduction of the burden of daily maintenance work ■ Review of hand wiping cleaning with thinner and solvents - Transitioning degreasing work previously done by hand to spray cleaning → Reevaluation of work burden, odor, and solvent management
Line up（5）
| Model number | overview |
|---|---|
| R60N | Cleaning dimensions 630Φ×H400mm / Maximum 100kg |
| R70N | Cleaning dimensions 770Φ×H400mm / Maximum 150kg |
| R90N | Cleaning dimensions 970Φ×H550mm / Maximum 250kg |
| R120N | Cleaning dimensions 1170Φ×H550mm / Maximum 500kg |
| R140N | Cleaning dimensions 1370Φ×H850mm / Maximum 1000kg |
catalog（2）
Download All Catalogs
Company information
E-Plan Co., Ltd. is dedicated to being kind to people and keeping the natural environment clean. E-Plan provides advanced cleaning technologies that are gentle on both people and nature, developing and selling purification systems that regenerate various types of wastewater generated from cleaning in various industries (such as metals, LCDs, lenses, chemicals, cosmetics, pharmaceuticals, food, and livestock), as well as cleaning machines that do not pollute the environment. Additionally, E-Plan Co., Ltd. manufactures and sells a colorless and odorless electrolyzed water called Super Alkaline Ion Water "e Wash," which contains 99.9% water components and does not include synthetic chemicals such as surfactants, achieving powerful cleaning capabilities while being safe and environmentally friendly.
