For the evaluation and visualization of pulsed eddy current testing (PEC)! High-precision simulation of transient eddy current changes after current off and behavior around defects.

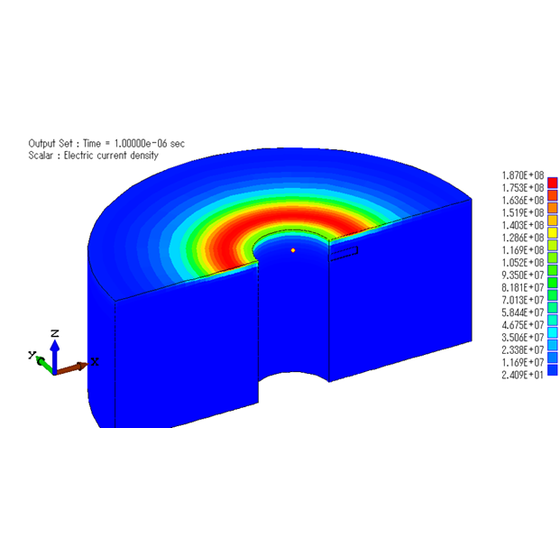

Defect detection in aluminum conductors and similar materials (Pulsed Eddy Current Testing: PEC) requires a thorough understanding of the transient eddy current time variation immediately after the current is turned off and the flow around defects. This time, we will introduce a visualization case using the dynamic magnetic field analysis software "PHOTO-EDDY." In this analysis, we reproduce the behavior of eddy current concentration (skin effect) on the surface of the conductor immediately after the rectangular pulse current is turned off, showing how it reaches the defect depth and spreads into the deeper layers over time. The local changes in current density at the defect site can also be visually evaluated by setting the skin layer mesh. 【Features and Benefits of Introduction】 - Time-series visualization of eddy currents: Clearly evaluate transient diffusion behavior and local concentration. - High-precision modeling: Analyze minute defects with mesh division that considers the skin effect. - Optimization of non-destructive testing: Contribute to the preliminary examination and efficiency of testing conditions (pulse width, etc.). 【Overview of Analysis Case】 - Analysis target: Aluminum conductor (with through holes and defects) & excitation coil (compliant with TEAM Problem 27). - Evaluation items: Time-series transition of transient eddy current density distribution (1.0e-6 to 1.0e-3 [sec]). - Software used: Dynamic magnetic field analysis software PHOTO-EDDY. *For detailed data and results, please feel free to download the PDF or contact us.
Inquire About This Product
basic information
- Software Classification: 3D Magnetic Field Analysis Software - Analysis Method: Finite Element Method (FEM) - Target Phenomena: Transient Electromagnetic Field Analysis, Eddy Current Analysis, Magnetic Field Analysis - Supported Mesh Configuration: Skin layer mesh capable of reproducing the skin effect, compatible with air region mesh - Modeling Support: Periodic and symmetric boundary analysis considering symmetry, such as 1/2 models - Evaluation Features: Eddy current density (contour display), electric and magnetic field contours, time-series step evaluation (transient response for 1.0e-6 to 1.0e-3 sec, etc.) - Operating Environment: Compatible with Windows OS
Price range
Delivery Time
Applications/Examples of results
[Purpose] - Investigation of detection sensitivity and conditions for Pulsed Eddy Current (PEC) - Non-destructive testing simulation of internal defects, cracks, and fissures in aluminum and metal conductors - Optimization study of excitation pulse width and excitation current - Visualization and mechanism elucidation of skin effect and transient diffusion phenomena of eddy currents [Examples of Achievements] - Transient eddy current verification based on TEAM Workshop Problem 27 (through-hole and defected aluminum conductor with circular coil) - Evaluation results of eddy current reaching deep defects and local concentration over time after the pulse current is turned off
