[Product Example] Aluminum Castings for Industrial Machinery

Thin meat, small R, and high-precision shapes supported! Skilled modeling technology that supports high precision.

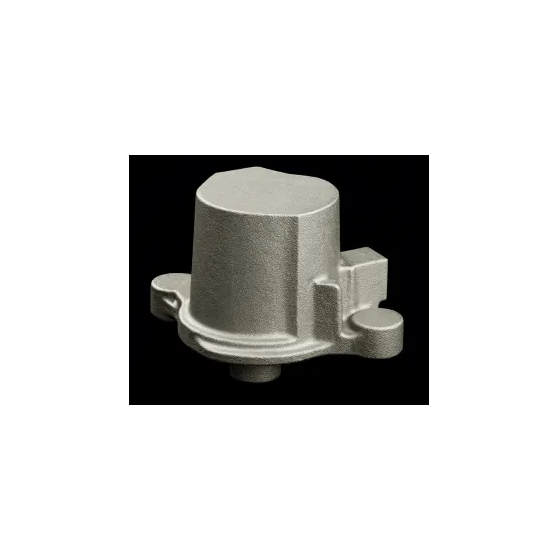

Here is an example of aluminum cast parts used in industrial machinery. Due to its thin wall thickness and small corner radii, this product requires high molding technology and stable quality control. To accurately reproduce the rib shape, special attention is paid to the sand filling and extraction processes during molding. In the finishing process, precise manual work is carried out to prevent excessive polishing that could deform the thin-walled shape. 【Case Overview】 ■ Size: L150×W120×H100mm ■ Material: AC4CH-T6 ■ Industry: Railway ■ Product Name: Railway Vehicle Parts ■ Process: Molding self-hardening → Melting → Finishing → Heat Treatment ■ Delivery Time: 2 weeks ■ Lot Size: From 1 piece *For more detailed information about the case, please refer to the related links. For more details, feel free to download the PDF or contact us.
