Difficult castings using many cores are standardized in quality with "non-shifting jigs + simulation analysis"!

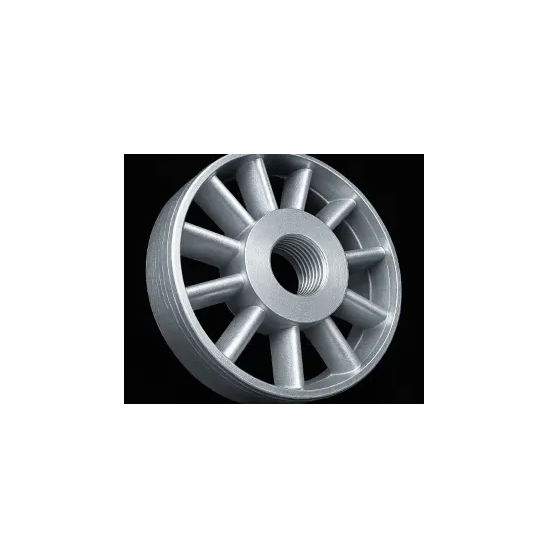

We would like to introduce a case study that addresses issues such as blade angle, shrinkage defects, and mold misalignment in engine parts. There are 11 sand molds placed inside the blades, but they are set in one go using a dedicated jig, ensuring that the blade angles do not shift. The aluminum pouring process is simulated and analyzed to standardize the quantity and speed of pouring using a wooden pattern, maintaining the same conditions each time. Additionally, because the mold alignment is precise, there is very little burr formation, significantly reducing the time required for manual finishing. 【Case Overview】 ■ Size: L600×W400×H250mm ■ Material: AC4B-F ■ Industry: Generator ■ Product Name: Generator-related parts ■ Process: Cold core → Flask core → Self-hardening → Finishing → Heat treatment → Measurement → Inspection ■ Delivery Time: 2 weeks ■ Lot Size: From 1 piece *For detailed information about the case, please refer to the related links. For more information, feel free to download the PDF or contact us.
Inquire About This Product
basic information
*The details of the case can be viewed via the related link. For more information, please download the PDF or feel free to contact us.*
Price range
Delivery Time
Applications/Examples of results
*The details of the case can be viewed via the related link. For more information, please download the PDF or feel free to contact us.*
