Eliminate winter "troubles" from the ground up! Free yourself from the anxiety of slipping due to snow and ice, and support a safe and comfortable winter.
This automatic control device is a highly reliable system that accurately detects the surface temperature and moisture according to the weather conditions and usage at the installation site, and automatically controls the output to road heating. 【Main Features and Functions】 Moisture detection and heater switching function: Accurately detects freezing and snow conditions at 7:00 based on the target low average temperature for the month. Preheating function (E3): Reduces the amount of freezing and snow accumulation through anticipated operation before snowfall. Moisture retention timer: Maintains output for a set time (max adjustable) even after snowfall ends, ensuring reliable snow melting. Easy-to-use operation panel: The digital temperature controller (SDC15) and easy-to-read LED lamp allow for immediate understanding of operating conditions. Expandable options: By adding external temperature sensors and snowfall sensors, control can be achieved using a 3-element or 4-element method. Compatible with various installation environments: Ideal for medium to large-scale facilities in heavy snowfall areas.
Inquire About This Product
basic information
Power Supply: AC 100/200V 50/60Hz Temperature Control Unit: Indicating Temperature Controller SDC15 / Temperature Control Range: Fixed at 1.0℃ (1 contact resistive load 5AAC250V) Power Consumption / Weight: Approximately 16W (when using 200V) / Weight: 1.8kg Surface Temperature Sensor: Embedded type / Platinum Temperature Sensor Pt100Ω (JIS Class B) Moisture Sensor: Embedded type (with 2PNCT lead wires) Options: Outdoor Temperature Unit (KTC-1A type), Snowfall Unit (JB1700C)
Price range
Delivery Time
Applications/Examples of results
【Recommended Locations】 Parking lots of commercial facilities Steep slopes and curves Around sidewalks and bus stops Entrances and exits of hospitals and schools 【Benefits of Introduction】 Prevention of slip accidents: Significantly reduces the risk of slips due to snow and ice. Reduction of snow removal work: Greatly reduces the effort and cost of snow removal. Reduction of running costs: Keeps electricity costs down with efficient operation, promoting energy savings. Maintains aesthetics: Embedded design for a neat appearance, preserving visual appeal.

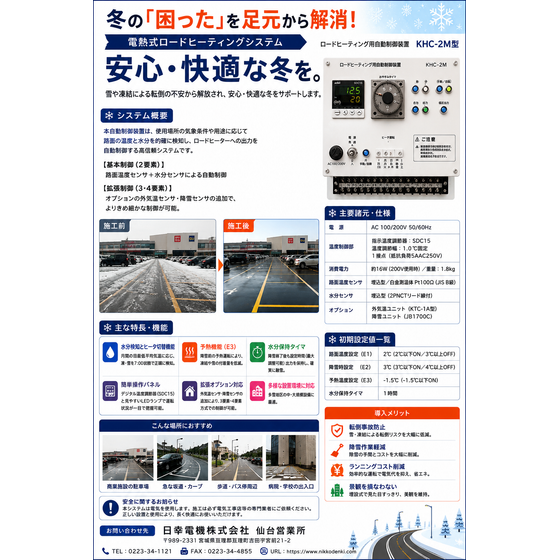

catalog（1）
Download All Catalogs![Electric Heating Road Heating System (Kita Nippon Densen Co., Ltd.) Product Catalog [Nikko Electric Co., Ltd. Sendai Sales Office]](https://image.mono.ipros.com/public/catalog/image/01/fe7/458174/IPROS18223374211424900774.jpeg?w=120&h=170)
