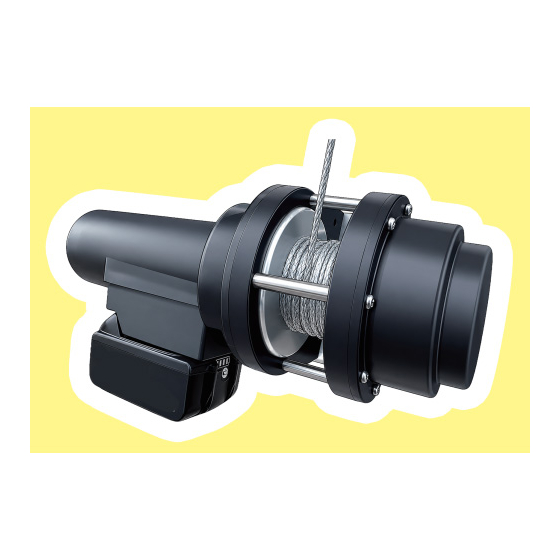

Assistance for the installation of outdoor units for home use! ● 18V battery-powered ● Labor-saving ● Burden reduction
●Smoothly raise and lower with the pulley! ●The remote control is a simple design for just raising and lowering. ●Air conditioner hoist supports up to 80kg! *The ladder will experience double the load. Please check the load capacity before use.
Inquire About This Product
basic information
■Specifications Model Number: M4571AL80-5M Power Supply: This product does not come with a battery. Please prepare a Makita genuine 18V lithium-ion battery (BL1860B 6Ah) separately for use. Capacity: Maximum lifting load 80kg *The lifting capacity varies depending on the load capacity of the ladder used. For a ladder with a load capacity of 100kg, the maximum lifting weight is 50kg; for 130kg, it is up to 65kg. Rewind Speed: 6m/min (at maximum load) Rope: COATED DYNEEMA(R) SK 78 (diameter 3.3mm) Effective Rope Length: 10m Since a pulley attachment is used for a 2 or 3-step ladder hoist, the actual usable rope length is approximately 5m (lifting height). Remote Control Cable Length: Approximately 3m Brake: Mechanical brake Lifting Height: Capable of lifting up to 5m above ground (when lifting object height is 900mm). Compatible Ladders: JIS standard compliant and SG mark certified 2-step and 3-step ladders - Ladders up to 8.5m in total length - Step thickness: 40mm to 45mm - Step spacing (pitch): 300mm to 400mm Product Weight: Approximately 9.0kg
Price range
Delivery Time
Applications/Examples of results
●Install the fixing bracket *Before use, check that there are no looseness or other issues with the nuts of the fixing bracket. <1> Set the fixing bracket so that the buckle is facing the front on top of the outdoor unit. <2> Wrap the lashing belt around the outdoor unit to avoid twisting. *Refer to the instructions below for tightening and loosening. <3> Pass the belt through the buckle and pull it by hand until there is no slack. <4> Move the buckle's tightening lever up and down several times, tightening it until it becomes firm. *Please be careful not to over-tighten, as it may deform the outdoor unit casing. <5> Tighten the other side in the same manner. <6> Check the tension of the belt by touching it with your hand. <7> After tightening, bundle any excess belt so it does not get in the way. <8> Adjust the position of the shackle hole to balance the outdoor unit. ●Remove the fixing bracket <1> Press the release lever of the buckle and loosen the belt while keeping the tightening lever open at a 180° angle. <2> Remove the fixing bracket from the outdoor unit.
