Precision injection molding with a tolerance of ±0.01mm | Centralized monitoring of 20 to 200t molding machines
Reduce operational losses across all molding machines! By thoroughly implementing a secondary cooling system and clean room management, we enable high-precision molding with a tolerance of ±0.01mm.
The precision plastic molding and centralized management system is a contract processing system designed to prevent dimensional defects and distortions caused by temperature changes in molds during the resin molding process. "For each lot, dimensions vary and yield does not improve..." For such situations, we provide reliable quality stability through network monitoring of all machines and environmental control. 【Recommended for these issues】 ◆ Dimensions of molded products fluctuate due to outside temperature and seasonal changes ◆ When molding defects occur, there is no data left to investigate the causes ◆ Unable to find a contractor for precision parts that require cleanliness <Reasons for being chosen> - All molding machines from 20t to 200t are connected via ROBOSHOT-LINKi2, allowing real-time recording of condition changes and alarm history - Mold temperature is maintained through secondary cooling systems and clean room temperature control, accommodating precision levels of ±0.01mm - Self-supplied power from a 763kW solar power generation and power conditioner reduces the risk of power fluctuations even during 24-hour continuous operation For any questions regarding specifications or prototypes, please feel free to download the catalog or contact us.
Inquire About This Product
basic information

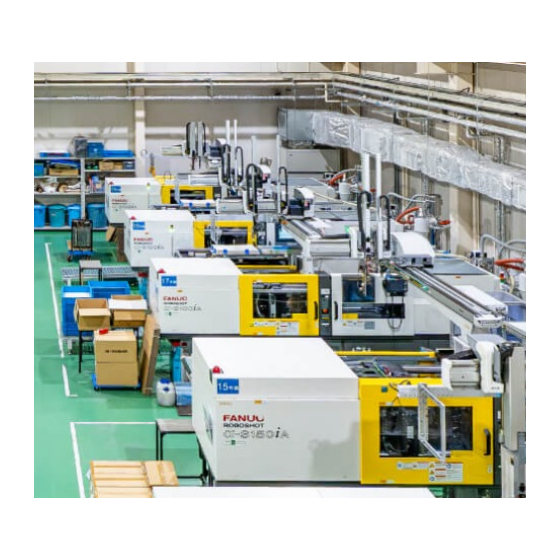

Electric Injection Molding Machine Equipment <All manufactured by FANUC Corporation>: Clamping Force Model Name Quantity 300 ROBOSHOT α-S250iA 1 unit 180 ROBOSHOT α-S150iA 2 units 180 ROBOSHOT α-S150iB 3 units 125 ROBOSHOT S-2000i 125B 2 units 125 ROBOSHOT α-S100iA 9 units 125 ROBOSHOT α-S100iB 2 units 50 ROBOSHOT α-50iA 1 unit 50 ROBOSHOT S-2000i 50A 1 unit 50 ROBOSHOT S-2000i 50B 2 units 50 ROBOSHOT α-S50iA 2 units 30 ROBOSHOT S-2000i 30B 1 unit 30 ROBOSHOT α-S30iA 2 units 30 ROBOSHOT α-S30iBJ 1 unit 15 ROBOSHOT α-S15iA 1 unit *Other equipment can be viewed in the catalog.
Price range
Delivery Time
Applications/Examples of results
For more details, please contact us.
catalog（1）
Download All Catalogs
Company information
Since our establishment in 1955 as a manufacturer of plastic resin products, we have grown by addressing various challenges and needs from our customers. To deliver on one of our customers' needs for "stable quality" and "high-quality products," we have organized our business processes and are thoroughly implementing CAPDo. Additionally, we are focusing on creating an environment that allows us to address various customer needs, requests, and problem-solving by establishing new factories, installing clean rooms, and introducing advanced equipment and devices utilizing IoT, while promoting systematization of our production management system to improve quality and delivery times.
