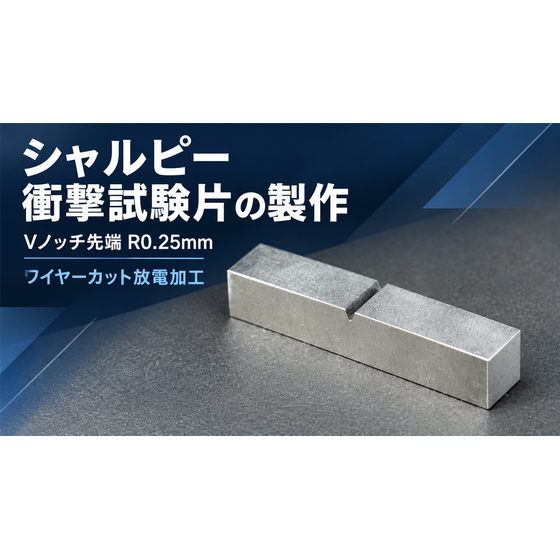

Please consult us regarding the cutting, shaping, and V-notch processing of Charpy impact test specimens. We will take into consideration specified shapes such as a tip radius of 0.25mm and the processing surfaces.
At Hanshin Seiko, we accept wire-cut electrical discharge machining of Charpy impact test specimens based on provided drawings. We will consider the manufacturing method according to your desired processing range, including cutting from the material, contour machining, and V-notch processing. For specified shapes such as a V-notch with a tip radius of 0.25mm, we take into account the notch depth, angle, tip radius, and the contour connecting the slope to the tip radius. We combine wire diameter, discharge gap correction, feed, tension, and processing fluid conditions to perform finishing cuts according to your requirements. We confirm the sampling position of the test specimen, material direction, and the surface where the notch will be created, processing while inheriting the identification information of the supplied material. If necessary, we will also consider preparing reference surfaces through cutting or grinding. Along with the drawings, please provide information on material, heat treatment condition, applicable standards and versions, surface roughness, inspection requirements, quantity, and desired delivery date. We will check the scope of processing, finishing, and inspection and provide guidance accordingly.
Inquire About This Product
basic information
Processing target: Charpy impact test specimen Processing method: Wire cut electrical discharge machining Consultation scope: Material cutting, contour processing, V-notch processing Shape introduced in the article: V-notch tip R0.25mm Shape management items: Notch depth, angle, tip radius, contour continuity Material management items: Sampling position, material direction, notch surface, identification information of supplied material *Dimensional tolerances, surface roughness, and inspection methods will be confirmed based on drawings, applicable standards, and requirements from testing institutions. The surface condition due to electrical discharge machining will also be considered, and the necessity for additional finishing and the scope of response will be discussed.
Price information
This is an individual estimate for each drawing. We will confirm the material, heat treatment condition, material dimensions, sampling conditions, processing range, notch shape, quantity, finishing, and inspection requirements before providing the estimate.
Delivery Time
※We will confirm the condition of the materials, processing range, quantity, and details of finishing and inspection, and provide guidance. Please let us know if there are any supplied materials, the expected supply date, and your desired delivery date.
Applications/Examples of results
【Purpose】 Manufacturing test specimens for Charpy impact testing. 【Processing Services Available】 - Cutting test specimens from supplied materials - Shaping based on drawings - Additional processing for V-notches - Processing specified shapes such as a tip radius of 0.25mm - Processing of test specimens with specified sampling positions and material orientations - Preparation of reference surfaces combining cutting and grinding We will confirm the processing methods and inspection scope according to applicable standards, drawings, and testing agency requirements. *This is a contract processing service for test specimens. It is not an advertisement for contracting the impact testing itself.*
Company information
Hansei Seiko Co., Ltd. is a precision metal processing company founded in 1948, based in Kobe City, Hyogo Prefecture. We offer integrated processing services centered around wire cut electrical discharge machining, shape electrical discharge machining, and fine hole electrical discharge machining, as well as machining, polishing, finishing, and measurement. We welcome inquiries for precision parts, mold components, jigs, test pieces, and more, whether for single items, prototypes, or small lots. In addition to processing hardened steel, carbide, and stainless steel, we also handle contour machining of thick parts, key grooves, fine slits, and complex shapes. We confirm material, shape, required precision, and application, and consider processing conditions and processes. This reduces the burden of arranging multiple processing locations and supports part manufacturing. Based on the principle of "making according to the drawings," we conduct inspections and measurements in-house to confirm the finish before shipping. Based in Kobe and Hyogo, we accept processing inquiries and quotation requests from across the country. If you have parts you are struggling to process or drawings for which you would like to consider methods and processes, please feel free to consult with us. https://www.hansei.co.jp/
