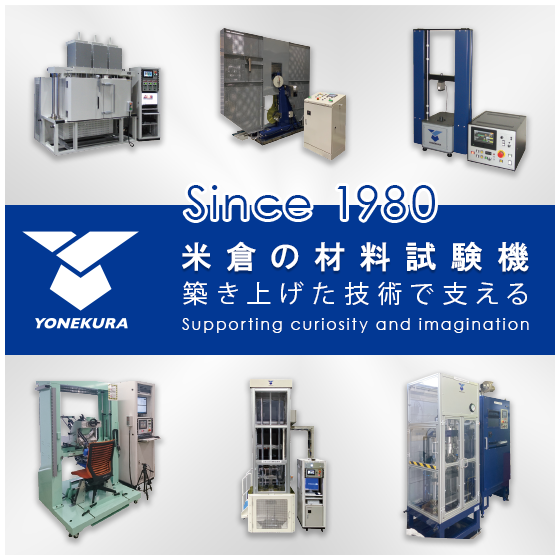

Material testing machines: Manufacturing from basic to complex customizations [Manufacturing achievements currently published]

It excels in material screening of solid electrolytes and impedance evaluation according to temperature characteristics! ▼Features▼ 1. Reproduces various heating patterns of inorganic electrolyte heating and sintering processes in a short time. - Temperature can be adjusted with ±1°C accuracy within a temperature range of 50°C to 1200°C. - The heating rate is also a maximum of 300°C/min, allowing for various heating patterns to be tested in a short time from room temperature. 2. Efficient simultaneous evaluation of impedance measurements for lithium-ion conductivity (conductivity). - A structure that allows heating with electrodes attached to the top and bottom of the coin cell. - The coin cell holder is prepared for 4 slots. - Uniform heating/measuring of 4 samples simultaneously under the same conditions. - Various coin cell diameters available from Φ20 to Φ8mm. 3. Simple operation and design that prevents exposure to the atmosphere/control of the environment. - Work inside the glove box is limited to sample set-up only. - Inside the quartz tube, a quartz coin cell holder is maintained, and only the coin cell is accurately heated. - The completely sealed transparent quartz tube is heated from the outside using light heating. - Gas introduction systems and atmosphere control during heating are also easily manageable. For more details, please contact us.

We have published the product page and catalog for Yonekura Manufacturing's "Chair/Office Chair Testing Machine." This testing machine conducts strength tests, fatigue tests, impact tests, and more, assuming various situations. We also manufacture testing machines tailored to the shape and use of your products, as well as your unique evaluation criteria. If you are considering conducting strength tests for furniture in-house, reducing costs, or improving development speed, please feel free to consult with us. 【Product List】 ● Chair Strength Testing Machine (Single Series) ● Chair Strength Testing Machine (Triple Series, for Long Benches) ● Caster Mobility Testing Machine ● Armrest Durability Testing Machine We also build systems that incorporate measurement result data and automatic processing of measurement data. We will produce your desired testing machine with a consistent production system. ▽▼ Click here for the Chair/Office Chair Testing Machine page ▼▽ https://premium.ipros.jp/yonekura/product/detail/2000724174/?hub=163&categoryId=55520 *For more details, please refer to the PDF materials or feel free to contact us.

It excels in material screening of solid electrolytes and impedance evaluation according to temperature characteristics! ▼Features▼ 1. Reproduces various heating patterns of inorganic electrolyte heating and sintering processes in a short time. - Temperature can be adjusted with an accuracy of ±1°C within a temperature range of 50°C to 1200°C. - The heating rate is also a maximum of 300°C/min, allowing for various heating patterns to be tested in a short time from room temperature. 2. Efficient simultaneous evaluation of impedance measurements for lithium-ion conductivity (conductivity). - Structure allows for heating with electrodes attached to both sides of the coin cell. - The coin cell holder is prepared for 4 slots. - Uniform heating/measuring of 4 samples simultaneously under the same conditions. - Various coin cell diameters available from Φ20 to Φ8mm. 3. Simple operation and design that prevents exposure to the atmosphere / atmosphere control. - Work inside the glove box is limited to sample set only. - Inside the quartz tube, a quartz coin cell holder is maintained, and only the coin cell is accurately heated. - The completely sealed transparent quartz tube is heated externally by light heating. - Gas introduction systems and atmosphere control during heating are also easily managed. For more details, please contact us.

Basic Information (For details, please refer to the product page) [Standards] JIS B7722 / JIS Z2242 [Basic Configuration] Body main unit / Anvil / Hammer (pendulum) / Safety protective cover / Motorized lifting mechanism / Control panel / Scale plate* *May be subject to change depending on usage requirements. [Weight] (for metal) 300J / 500J / 800J [External Dimensions] Size (including cover) Weight 300J W2100×D1200×H2050mm Approximately 650kg 500J … 800J … [Examples of Options] Base plate / Hammer drop prevention mechanism / Sample positioning mechanism / Sample recovery conveyor / Instrumentation / Data collection device / Digital angle display / Data transmission system Automatic sample transport / Automatic burr removal mechanism / Constant temperature chamber By combining the data processing devices we provide, it is possible to automatically import and save data (such as angle and absorbed energy) to a PC. ▼ Instrumentation Software [CHARPAC]* Optional ▼ The Charpy impact testing machine is equipped with instrumentation software, allowing results that were previously observed visually to be confirmed through graphs and numerical values.
