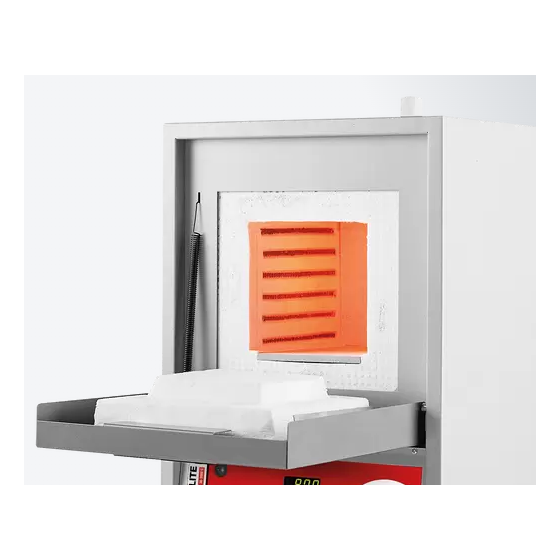

ELF is a tabletop small chamber electric furnace suitable for a wide range of applications, with a maximum temperature of 1100°C. You can choose from three different furnace volumes.
Standard Specifications Operating Temperature: 1100°C (Maximum Temperature: 1200°C) Furnace Volume: 6, 14, 23 L, various types Front-opening door The standard temperature controller is a PID control model 301. It allows adjustment of the set temperature, heating rate, and maintenance time at the set temperature. Delay start function / Process timer function is standard equipment High-performance insulation material using vacuum forming Robust hard ceramic furnace floor is standard equipment Ceramic exhaust port is installed at the top
Inquire About This Product
basic information
Standard Specifications Operating Temperature: 1100°C (Maximum Temperature: 1200°C) Furnace Volume: 6, 14, 23 L, various types Front-opening door The standard temperature controller is a PID control model 301. It allows adjustment of the set temperature, heating rate, and maintenance time at the set temperature. Delayed start function / Process timer function is standard equipment High-performance insulation material made by vacuum forming A sturdy hard ceramic furnace floor is standard equipment Ceramic exhaust port is installed at the top
Price range
Delivery Time
Applications/Examples of results
Tabletop small chamber electric furnace suitable for a wide range of applications with a maximum temperature of 1100°C.
