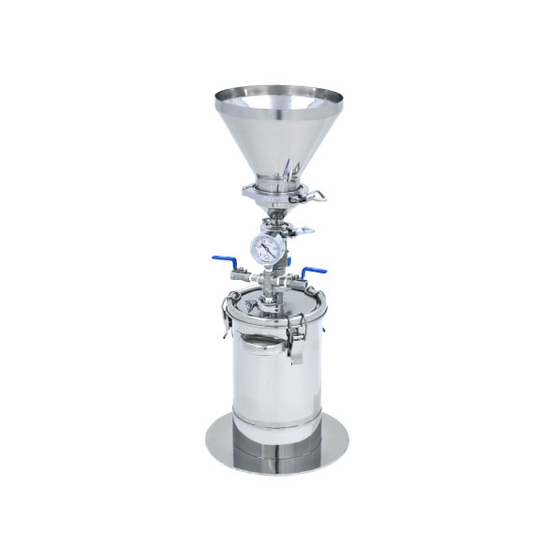

Stainless Steel 2L Vacuum Filtration Device for Testing Purposes [Case Studies]
Examples of customized filtration containers used for filtering ceramic raw materials.
This is a customized product based on the requests "The existing glass filtration device does not have enough capacity" and "I want to use a handheld poly bottle for collecting the filtrate." It can perform suction filtration of about 2 liters at a time. Application: Filtration of ceramic raw materials. Although it is larger than typical glass laboratory filters, it is made of sturdy stainless steel, allowing for safe handling. Reinforcements have been added to the bottom of the container to prevent tipping.
Inquire About This Product
basic information
【Material】 Main body (hopper/container): SUS304 Filter (catch net): SUS304 Temporary storage frame for hopper: SUS304 Packing: Silicone rubber (compliant with food sanitation law) 【Other Specifications】 Filter paper installation area: Approximately φ90mm (3.5S Heller) Filtration capacity: Up to about 2L Surface treatment: Buff polished inside and outside Operating conditions: Vacuum specification (-0.1MPa) Management number: 1Y001419
Price range
Delivery Time
Applications/Examples of results
Application: Filtration of ceramic raw materials
