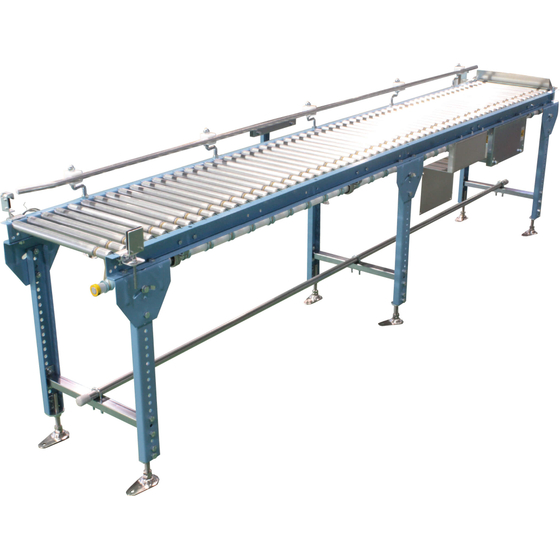

Round belt driven accumulation roller conveyor MCD-28
Multi-Beya Series - Conveyor units that can flexibly adapt to various logistics lines.
Ideal for transporting small items! Achieves space-saving and smooth accumulation transport with small-diameter rollers.
This is a small-diameter roller type counter drive. With a roller diameter of 28.6 mm, it achieves a minimum roller pitch of 30 mm. It can be used for transporting small items with a length of 120 mm. 【Main Specifications】 - Reference transport mass: 15 kg/m (distributed load) - Length: 60 to 300 cm - Frame: [60×30×2.3 - Nominal width: 200 to 400 mm
Inquire About This Product
basic information
【Features】 - Achieves a minimum pitch of 30 mm with a roller diameter of φ28.6 mm - Simple accumulation function through round belt drive - Compact design allows for flexible layout 【Other Specifications】 - Roller diameter: φ28.6 mm - Angles: 30°, 45°, 60°, 90° - Motor output: 90 W, 0.2 kW - Minimum height: 280 mm (drive unit) *For detailed product information, please visit our website. *CAD data may be updated without notice. Please check our website for the latest data.
Price range
Delivery Time
Applications/Examples of results
■Meeting all needs from transportation to palletizing Each model is standardized, allowing for flexible combinations, and can accommodate all logistics needs from transportation to palletizing. ■Advantages of line configuration The main model of the Multi-Beya series, the "Counter Drive (MCD)," has a wide range of units. It can be driven by a single motor for straight sections, curves, merging, and branching, allowing for economical, rational, and flexible layouts through combinations of units. Additionally, there is a lineup of free roller conveyors that transport without using power. They are easy to use, cost-effective, and help reduce labor in various tasks. ■Driven roller conveyor The driven rollers powered by a motor feature a round belt drive that allows for inexpensive and simple accumulation. There is also a chain drive that powers rollers with sprockets via a chain. Flat and V-belt drives are suitable for high-speed and quiet transportation. Adjacent roller drives use a motor or motor roller to drive the rollers. Motor roller drives operate through the rotation of the motor roller itself. These conveyors accommodate straight and curved transportation according to the transportation form.
catalog（2）
Download All Catalogs
Company information
Maruyasu Machinery is a machinery manufacturer that specializes in conveying equipment such as conveyors, as well as various automation and labor-saving machines. Through solving challenges related to "transportation," we contribute to automation, labor reduction, and energy conservation across a wide range of industries. We have adapted to any form of transportation that moves from right to left or top to bottom, handling all types of transported items including food trays, carton cases, plastic containers, and pallets. In addition to providing versatile standardized products (standard products), we have focused on offering products tailored to the individual needs of our customers. After 70 years since our founding, we will continue to dedicate ourselves to providing even more original products and services to overcome the challenging economic environment.
