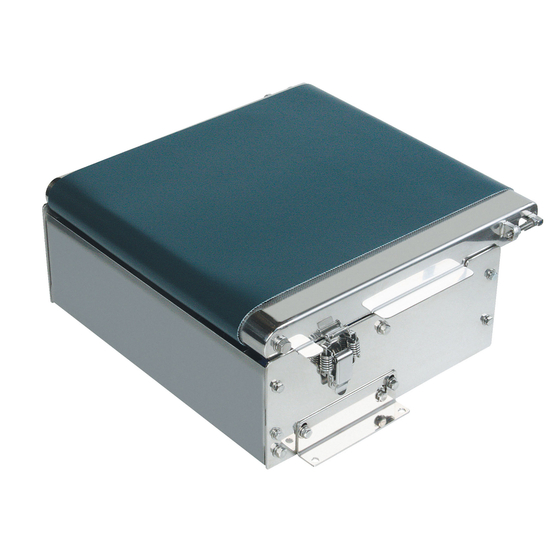

Short-length conveyor SL
N1 Series - Responding to special requirements in transportation, we contribute to the realization of solutions.
A short machine length of at least 15 cm. Ideal for bridging between processes and for pitch adjustment and separation control.
Of course, it can be used as a connecting conveyor between processes, and by operating intermittently, it allows for pitch adjustment of the conveyed items, demonstrating its true value in controlling the separation of conveyed items. The optional belt loosening device features a structure that bends the conveying trough, making belt replacement easy. 【Main Specifications】 - Reference conveying mass: 0.5 kg/unit (intermittent operation) - Belt width: 150–250 mm - Tail roller: φ34 mm (drive) - Nominal machine length: 15–30 cm
Inquire About This Product
basic information
【Features】 - Space-saving connection with short machine length and low floor design - Pitch adjustment and disconnection control with intermittent operation - Easy replacement and cleaning with belt loosening device (optional) 【Other Specifications】 - Motor output: 60 W (intermittent operation) - Minimum machine height: 125 mm *For detailed product information, please visit our website. *CAD data may be updated without notice. Please check our website for the latest data.
Price range
Delivery Time
Applications/Examples of results
Next-generation conveyors that do not compromise on hygiene, safety, and maintenance. We have positioned our product line as the N1 series, thoroughly pursuing hygiene, maintainability, and safety. We aim for advanced transportation solutions.
