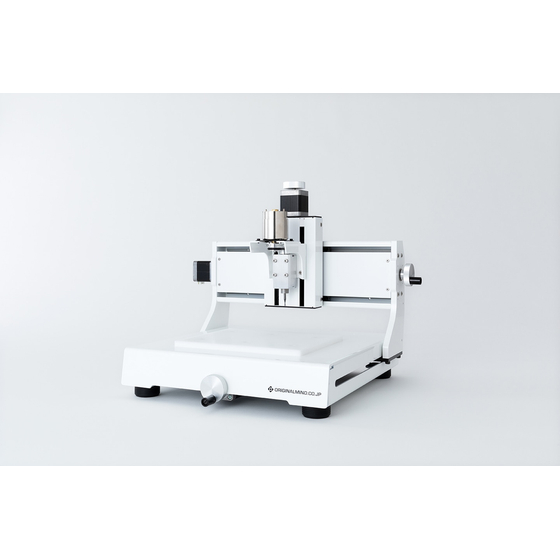

Tabletop CNC Milling Machine KitMill CL100/200/420
ORIGINALMIND "KitMill" Series
A minimalistic general-purpose machine that shines in usability.
The "KitMill" series features a minimalistic model that demonstrates excellent cost performance. It includes three models: the "CL100," which covers a wide processing range despite its compact size, and the "CL200" and "CL420," which further expand the processing range. Equipped with linear guides on all axes, it can also be used as a circuit board processing machine, consolidating various functions in a compact form. With a pure white design that exudes a light impression, it accommodates various creative styles from home to Fab spaces.
Inquire About This Product
basic information
Please take a look at the specifications page.
Price information
From 328,000 yen (including tax)
Price range
P3
Delivery Time
P2
Applications/Examples of results
Please take a look at the page for the processed samples.
Detailed information
-
Development Highlight 01 | Compact Footprint × Large Working Area
-
Development Highlight 02 | Available in Three Sizes for Diverse Creative Needs
-
Development Highlight 03 | Customizable Spindle Motor
-
Development Highlight 04 | High-Quality PCB Milling Capability
Line up（3）
| Model number | overview |
|---|---|
| KitMill CL100 | Table size W: 220mm D: 180mm, Stroke X-axis: 227.4mm Y-axis: 184.8mm Z-axis: 80.4mm, Spindle rated speed: 4800rpm, with 2-step pulley: 2 stages of 4800, 7000rpm (2-step pulley sold separately), Motor rated output: 12W, Feed type: Metric screw, Maximum feed speed: 15.0mm/s (F900), 42mm square stepping motor, Resolution: 0.78μm. |
| KitMill CL200 | Table size W: 350mm D: 200mm, Stroke X-axis: 355.4mm Y-axis: 204.8mm Z-axis: 80.4mm, Spindle rated speed: 5600rpm, with 3-step pulley: 3400, 5600, 10000rpm in three stages (3-step pulley sold separately), Motor rated output: 35W, Feed type: trapezoidal screw, Maximum feed speed: 16.7mm/s (F1000), 56mm square stepping motor, Resolution: 1.25μm. |
| KitMill CL420 | Table size W: 350mm D: 420mm, Stroke X-axis: 355.4mm Y-axis: 424.8mm Z-axis: 80.4mm, Spindle rated speed: 5600rpm, with 3-step pulley: 3400, 5600, 10000rpm in three stages (3-step pulley sold separately), Motor rated output: 35W, Feed type: trapezoidal screw, Maximum feed speed: 16.7mm/s (F1000), 56mm square stepping motor, Resolution: 1.25μm |
