Guaranteeing the quality of sheet substrates! Contributing to the reliability improvement of automotive parts.

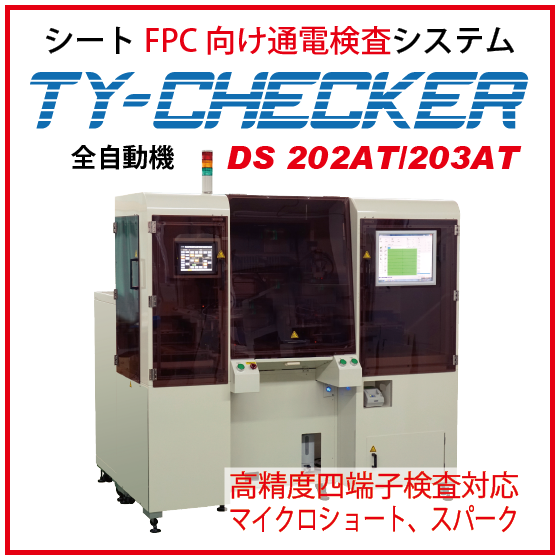

In the automotive industry, the quality of electronic components is a crucial factor that influences safety and performance. In particular, FPCs (Flexible Printed Circuit Boards) used in onboard electronic devices must demonstrate high reliability as they are subjected to harsh environments, including vibrations and temperature changes. Poor conductivity or insulation failures can lead to serious accidents, making strict quality control essential. Our electrical testing machine, 'TY-CHECKER DS202/203 (AT)', achieves high reliability and efficient testing for FPC quality assurance. 【Application Scenarios】 * Automotive electronic device manufacturers * FPC board manufacturers * Quality control departments * Automotive parts suppliers 【Benefits of Implementation】 * Improved quality of FPC boards * Prevention of defective products from being released * Increased efficiency in the inspection process * Cost reduction
Inquire About This Product
basic information
【Features】 * Unique transport system: Dedicated plate transport method * Equipped with a proprietary dual alignment system! * Learning-based camera-less alignment * Built-in camera alignment in the fixture * Various fixtures (wire-type and composite-type) can be installed, enabling cost reduction. * Supports continuity testing, insulation testing, four-terminal testing, and micro-short detection. * Achieves stable transport even for ultra-thin FPCs and flexibles after die-cutting. 【Our Strengths】 Taiyo Techno-Rex Co., Ltd. fully supports the design, prototyping, and mass production of FPCs. With years of experience and technical expertise, we provide optimal testing systems tailored to customer needs, contributing to the quality improvement of automotive parts.
Price range
Delivery Time
Applications/Examples of results
For more details, please refer to the PDF document or feel free to contact us.
catalog（6）
Download All Catalogs
Company information
Taiyo TechnoRex Co., Ltd. continues to operate in the fields of prototype development of flexible printed circuit boards (FPC) and printed circuit board testing systems. Since FPC is fundamentally related to the structure of hardware, both high precision quality and shortened development time are required. We have extensive experience and know-how in the manufacturing processes of single-sided FPC, double-sided FPC, multilayer FPC, and their advanced types, and we continuously improve and enhance our technology, resulting in consistent evaluations of our delivery times and quality. Additionally, while technically advancing further miniaturization and high density, we are also undertaking new initiatives such as bump-type and special material electroplating. On the other hand, our printed circuit board testing systems mainly consist of electrical inspection systems and final appearance inspection systems, which are adopted in the mass production sites of FPCs and package/module-type substrates. They operate day and night in quality control settings for substrates used in smartphones, automotive applications, and various electronic devices. We will continue to respond to the increasingly diverse market needs. *On December 21, 2023, the company name was changed from "Taiyo Kogyo Co., Ltd." to "Taiyo TechnoRex Co., Ltd."*
