4500N High Thrust Piezo Actuator for Nanotechnology

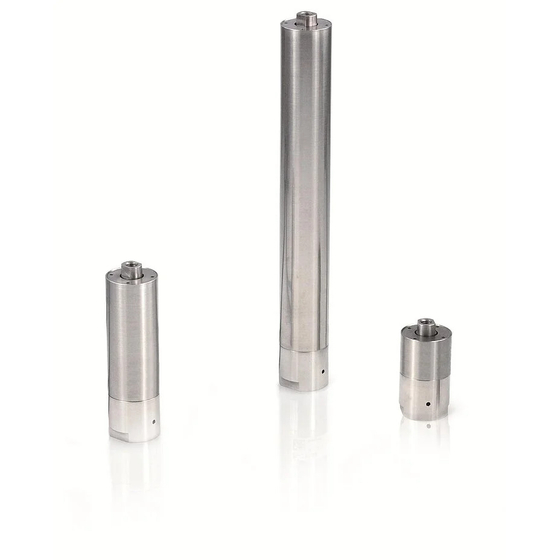

Actuator P-216 with a maximum stroke of 180µm, push force of 4500N, sub-millisecond response, and sub-nanometer resolution.
High-resolution piezo actuators that achieve nano-level positioning.
In the field of nanotechnology, precise position control at the nano level and fine motion control are required. Particularly in the observation at the atomic and molecular levels and manipulation of microstructures, the resolution and response performance of actuators significantly impact research outcomes. The P-216 piezo actuator is a high-load piezo actuator that combines sub-nanometer resolution with a maximum thrust of 4500 N. Its high-speed response enables high-precision positioning and fine motion control at the nanoscale. It supports precise motion control and stable operation in nano measurement devices and nano fabrication equipment. 【Application Scenarios】 - Scanning Probe Microscopy (SPM) - Nanoindentation - Microfabrication 【Benefits of Implementation】 - Enables precise positioning at the nano level - Improves experimental efficiency through high-precision operations - Creates new possibilities in research and development
Inquire About This Product
basic information
【Features】 - Stroke up to 180μm - Push force up to 4500N - Pull force up to 500N - Sub-millisecond response - Sub-nanometer resolution - Options: Vacuum, high temperature, and low temperature 【Our Strengths】 Based on over 50 years of experience at our headquarters in Germany and 30 years of experience with our Japanese subsidiary, we provide piezo stages and actuators adopted by research institutions and equipment manufacturers worldwide, utilizing our precision control technology. With a rich lineup and technical expertise, we propose optimal solutions to meet our customers' needs.
Price information
Please feel free to contact us.
Delivery Time
※Please feel free to contact us.
Applications/Examples of results
Application examples - Optics - Various measurements/interferometers - Adaptronics - Precision engineering/micromechanics - Adaptive mechanics - Active vibration damping - Switches - Laser tuning - Force generation/material testing - Nanotechnology
