[For semiconductor inspection equipment] Maximum load 10kg - Z stage L-310

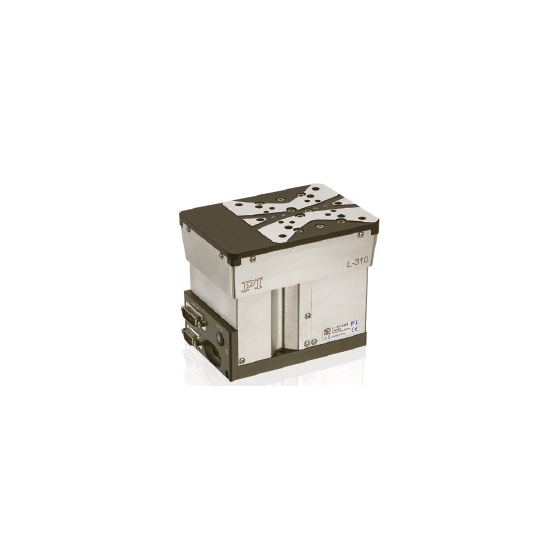

Precision Z Stage L-310
For Z-axis positioning in wafer inspection and chip inspection. Precision Z-stage utilizing high-rigidity cross roller guides.
In the semiconductor inspection process, precise positional control at the nano level is required to accurately detect minute defects in wafers and chips. In particular, stable positioning in the Z direction significantly affects inspection accuracy, especially in focus adjustments for inspection cameras and sensors, as well as in controlling the height position of the wafer. The L-310 is a high-precision Z stage that employs ball screw drive and cross roller guides. Its high guide precision and rigidity enable stable Z-direction positioning in semiconductor inspection equipment. 【Application Scenarios】 - Wafer inspection equipment - Semiconductor chip inspection equipment - Image processing inspection equipment - Focus adjustment for inspection cameras - Probe height adjustment 【Benefits of Implementation】 - Improved inspection accuracy through high-precision Z-axis position control - Enhanced reliability of inspection data due to stable operation - Long operating times supported by high duty cycle - Improved yield through enhanced defect detection accuracy
Inquire About This Product
basic information
【Features】 - Stroke: 26 mm - Maximum load: 10 kg - High rigidity structure with cross roller guide - Ball screw drive with no backlash - Compatible with DC / BLDC / stepping motors - Compatible with high-resolution encoders 【Our Strengths】 Based on over 50 years of experience from our headquarters in Germany and 30 years of experience from our Japanese subsidiary, we provide piezo stages and actuators adopted by research institutions and equipment manufacturers worldwide, utilizing precision control technology. With a rich lineup and technical expertise, we propose optimal solutions to meet our customers' needs.
Price range
Delivery Time
Applications/Examples of results
【Applications】 ■Industry ■Precision positioning in research fields ■High duty cycle *For more details, please refer to the PDF document or feel free to contact us.
