Miniaturizing the power supply board to 2/3! New circuit topology for improving efficiency with general-purpose Si.
Ultra-compact DC-DC circuit topology Insulated Tri-Magic Converter (TM)
【Technical Data Presentation】Reducing costs while miniaturizing and improving efficiency without SiC/GaN. "Simple Calculation Tool" available for design assistance!

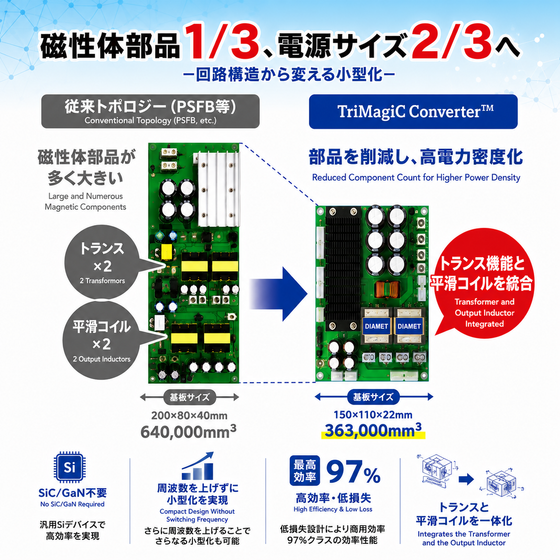

Solving issues such as "limitations of substrate area" and "cost increase due to SiC adoption." Our unique operating mode reduces magnetic component size by one-third without increasing frequency. We achieve dramatic downsizing while suppressing heat and noise. 【Challenges and Applications We Can Address】 ◎ Space Constraints: Reducing substrate area by two-thirds and magnetic components (such as transformers) by one-third (for applications like in-vehicle chargers, robotic joints, and 1U-sized communication boards). ◎ Cost Control: Achieving high efficiency using general-purpose silicon without relying on expensive SiC/GaN. ◎ Heat and Noise Mitigation: Halving ripple current and reducing magnetic flux density (ΔB) for low loss and low noise. 【Features of Our Unique Topology】 Adopting low permeability powder core "MBS" with "ON-ON / ON-OFF" modes. By suppressing the amplitude of the excitation current, we have made it possible to minimize transformers and capacitors. ★【Free Offer】Simple Calculation Tool & Technical Materials We are distributing a tool that allows you to instantly estimate "how much smaller it can get under your conditions." You can view detailed measurement data and more from the <Catalog Download>.
Inquire About This Product
basic information
**Principle of Miniaturization** The main transformer in our proposed circuit technology, the "Isolated TriMagiC Converter (TM)," features a structure where the input winding is directly applied to the smooth choke coil of the conventional current doubler rectifier. This allows for the dual operation of both the transformer and the coil. As a result, conventional main transformers become unnecessary, reducing the total size of magnetic components to less than one-third, achieving miniaturization. We offer our unique powder core "MBS" series, which is suitable for this circuit method. We can also propose circuit topologies tailored to specific requirements, as well as transformers suitable for those circuits and provide magnetic components (cores). *For more details, please refer to the materials. Feel free to contact us with any inquiries.*
Price range
Delivery Time
Applications/Examples of results
*For more details, please refer to the materials. Feel free to contact us as well.*
catalog（5）
Download All Catalogs
![[Principle Edition] TriMagiC Converter (Isolated DC-DC Converter) Technical Documentation](https://image.mono.ipros.com/public/catalog/image/2105342/IPROS12861183884758024347.jpeg?w=120&h=170)
![[Advanced Edition] TriMagiC Converter (Introduction to the transformer design and operation verification of a 1.6kW prototype using design tools)](https://image.mono.ipros.com/public/catalog/image/2105342/IPROS7162558876941433620.jpeg?w=120&h=170)
News about this product（1）
Company information
Our company provides powder metallurgy and sintered products, primarily focused on automotive parts. Since our founding in 1944, we have experienced various changes over the years, but we have consistently valued our commitment to "maximizing our response to customer requests with sintered products made using powder metallurgy." We are also actively challenging ourselves in new fields, focusing on the development and manufacturing of products that are central to improving automotive fuel efficiency technology and natural energy generation. Currently, we are expanding our business scope by leveraging our sintering expertise to take on new challenges in the power electoronics fileld. Please feel free to contact us.
