Built-in 8 SB16C1050 UART cores with a 256-byte transmit and receive FIFO.

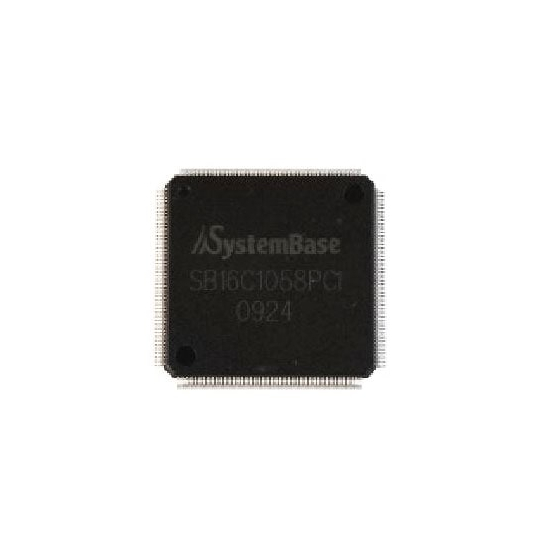

The SystemBase "SB16C1058PCI" is a one-chip solution designed for the design and manufacturing of an 8-port serial multiport product that connects 8 channels of asynchronous serial communication to the PCI bus without the need for external logic. It features eight UARTs with a 256-byte transmit and receive FIFO, which reduces CPU load and improves data processing capacity, and is equipped with dedicated control pins for global interrupts and RS422/485 auto toggling.
Inquire About This Product
basic information
Compatible with PCI Local Bus Standard Specification 2.3 Built-in PCI Target Controller Supports 33/66MHz PCI 32-bit bus Assists ultra-fast PCI bus operation with 0-wait output / 1-wait input delay Electrically compatible with PCI Local Bus Specification 3.0 (operable on PCI and PCI-X buses) Provides optional registers for efficient control and monitoring of UART Can load PCI configuration header data from external serial ROM Built-in 8 SB16C1050 UART cores with 256-byte transmit/receive FIFO Compatible with 16C550 and 16C650 register structures Supports auto-toggle function for automatic input/output switching on RS422 and RS485 buses Communication possible up to 5.3Mbps (supports system clock up to 85MHz) Supports HW and SW flow control (Auto-RTS/Auto-CTS and Xon/Xoff) SW flow control feature includes Xoff retransmission when data continues to be sent after Xoff character transmission Supports Xonany function to resume communication upon receiving any character
Price range
Delivery Time
Applications/Examples of results
Please contact us.
