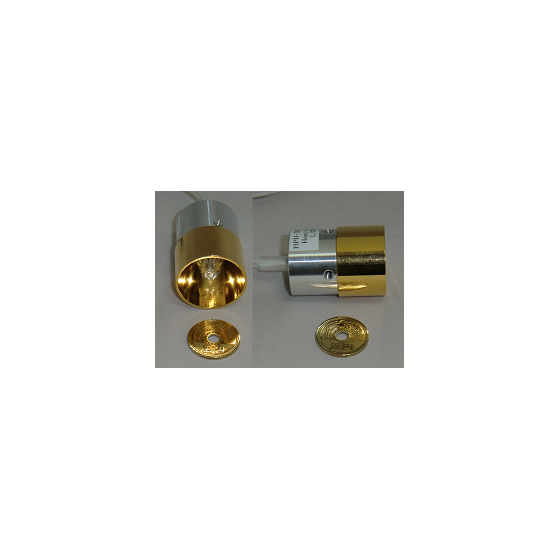

Small Halogen Point Heater HPH-30 Series
Heat-tech Halogen Point Heater HPH-30 Series
The temperature rises to about 1350°C with a focal length of 15mm.
1) It can heat a small point of φ5 up to 1350°C. 2) It achieves perfect clean heating, and heating in clean rooms or in a vacuum is also possible. 3) It has become possible to heat in narrow spaces that could only be addressed by optical fibers or lasers in the past. 4) There are no restrictions on the lighting direction, allowing for use while moving. 4) There are no restrictions on the lighting direction, allowing for use while moving.
Inquire About This Product
basic information
Outer diameter Φ30 Focal lengths in 5 types: 15mm, 30mm, 40mm, 100mm Focal diameters in 5 types: φ5, φ7, φ9, φ10, φ40 Power supply voltage in 2 types: 12V-110W, 24V75W
Price range
Delivery Time
Applications/Examples of results
Soldering of printed circuit boards Joining method of thermoplastic resin pipes Resin welding
Detailed information
-
Soldering of Printed Circuit Boards Soldering of printed circuit boards using the Halogen Point Heater HPH-30 Halogen Point Heater HPH-30 Electronics industry - Printed circuit board manufacturing process Soldering Struggled with finding a good method for lead-free solder The root cause of many troubles is the "temperature difference" and "wetting property difference" The temperature is low Soldered with the small spot Halogen Point Heater HPH-30 The heating and cooling times are short, and temperature control is easy, so the soldering was successful Since it is spot heating, thermal stress on other components was minimized Being non-contact eliminated defects caused by solder residue, and maintenance of the soldering tip became unnecessary Link to product description site: https://www.heat-tech.biz/products-hph/hph-ss/1342.html
-
Joining of Thermoplastic Resin Pipes Joining of thermoplastic resin pipes using the Halogen Point Heater HPH-30 Halogen Point Heater HPH-30 Resin Pipe Melt Joining Strength reduction due to insufficient or excessive temperature Compared to metals, the heat resistance temperature is lower and the thermal conductivity is smaller, making it difficult to uniformly melt only the joint area, leading to distortion and dimensional changes. Even if the joint appears to be clean from the outside, there may be cases of "cold fusion (the phenomenon of solidifying without sufficient melting)" or "entrapment of bubbles" occurring inside. The pipe ends were heated and melted mainly at the center of the pipe wall thickness using the Halogen Point Heater HPH-30, and then pressed together to achieve fusion and joining. A site that wants to automate the joining of high-quality, high-precision resin pipes, which are sensitive to contamination and shape deformation. By efficiently and quickly heating with the heater, work efficiency has improved. The heating head is small. Link to product description site: https://www.heat-tech.biz/products-hph/hph-ss/1342.html
-
Resin Welding Summary: Use the small spot halogen point heater HPH-30 for oxygen-free resin welding. Product Name: Halogen Point Heater HPH-30 Industry/Process: Plastic Case Manufacturing Application Category: Resin Welding On-site Issue: A small torch is needed. Why It Occurs: Oxide film causes poor bonding. Problems with Conventional Methods: Generation of oxide film. Solution: Heat with the halogen point heater HPH-30. Reason the Product is Suitable: Can be easily welded in a nitrogen atmosphere. Implementation Effect: Improved bonding quality. Comparison: Reaches 400°C in 5 seconds. FAQ: Q1. Is the control easy? A1. Yes, it is easy. Q2. Is it small enough to be integrated into equipment? A2. φ100xH100. Q3. Can experiments be conducted? A3. Please apply from the following site. https://www.heat-tech.biz/corporate/test-lab/ Link to Product Description Site: https://www.heat-tech.biz/products-hph/hph-ss/1342.html
