It is a robust hot air heater with redundant design.

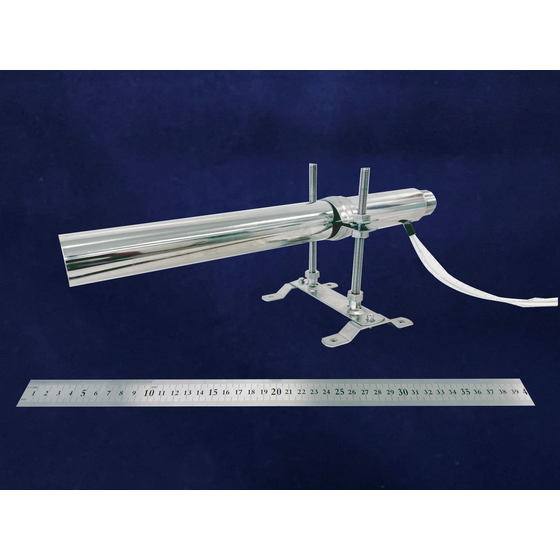

The ABH series features a heating element that comes into direct contact with the heating gas. By adopting a high-density heating element with a large surface area for efficient heat transfer, it can heat the passing gas to approximately 900°C. It is a robust hot air heater with a redundant design. The ABH-43NM is a higher model than the ABH-34NM. It incorporates a 5kw to 6kw heating element within a φ42.7 metal tube case. Please use it when a gas flow rate of 200 to 500 liters per minute is required. Accurate temperature control can be achieved using a thermocouple at the outlet. Since the temperature of the heating element can be monitored, safety measures against overheating can be implemented. The tip is threaded internally, allowing for various fittings to be attached. The ABH-43NM can accommodate a terminal box. There are metal tube cases available in various lengths. For safety and health measures, the temperature of the heating element can be monitored to prevent overheating. It is ideal for photography and video recording as it heats using transparent gas. The ABH-43NM is a popular model for use as a heater for deburring resin.
Inquire About This Product
basic information
A heating element of 5kw to 6kw has been incorporated into a φ42.7 metal tube case. Please check the details on the website below: https://www.heat-tech.biz/products-nh/nh-ss/nph-gj-gz/842.html
Price range
Delivery Time
Applications/Examples of results
Cap seal Film shrink Re-dissolution of hot melt Torch for resin welding Heat sealing of paper packs Heat crimping and burning fit Heating cutting of resin sheet materials Drying of coaters Drying of printed materials Drying of electric welding pipes Soldering of printed circuit boards Self-fusing of winding coils Deburring of resin molded products Heating of samples for electron microscopy Ignition source for burners Processing of grilled tofu End processing of fibers Production of heated nitrogen gas Preheating of resin sheets Preheating of printed circuit boards Surface analysis of materials Operational testing of thermoswitches Partial heating of culture media Production of heated sterilizing air Thermal distortion testing of liquid crystals Heating of ammonia gas Seal peeling Heat shrink of lithium batteries Dehumidifying drying of resin pellets Drying of silicon wafers Heating disinfection of liquids with bubbling Uniform heating of culture media Water removal and drying of metal films Water removal of glass bottles Replacement of gas in all-electric laboratories Drying of printed wire marks Aging of electronic components Adhesion of film and paper Drying of processing holes Internal drying of pipe products Prevention of double feeding and preheating of blank materials Water removal and drying of surface-treated steel plates Water removal and drying of engine blocks Rapid heating inside processing chambers
Detailed information
-
Deburring of Bumpers Issues We were using an industrial dryer attached to a robot, but it broke down quickly, causing problems. ⇒ Improvement Points Deburring was done using a hot air heater. Since precise control of the hot air discharge temperature is possible, the quality of the products improved. Furthermore, the startup time is quick, which shortened the takt time. MTBF has increased, and equipment utilization rate has improved.
-
Water drainage drying of the engine block Issues There was a problem with residual cutting fluid from the flushing cleaning. ⇒ Improvement points By using a large-capacity hot air heater to evaporate the residual water, water exposure in the next process was prevented. The need for water cleanup was eliminated, resulting in increased productivity.
-
Prevention of double feeding of blank materials and preheating Issues The blank materials were sticking together due to rust prevention oil. ⇒ Improvement points Air was blown using a wide nozzle of a hot air heater. The blank materials were separated, preventing double feeding. Additionally, sufficient preheating reduced shrinkage.
