Non-magnetic and impact-resistant wear liner material high manganese steel NM-13MN
NM-13MN
The surface hardens to the point of being shocking. Wear-resistant materials that are difficult to adhere to magnets are supplied as processed products.
In replacement parts such as liners and screens, performance that withstands impact and wear is required. Furthermore, non-magnetic properties are necessary for equipment that wants to avoid the influence of magnetic fields. High manganese steel NM-13MN is a suitable material for non-magnetic components subjected to impact loads and wear. NM-13MN has work-hardening properties that harden the surface due to impact, exhibiting high toughness and resistance to impact wear. It is used in liners and screens for shot blasting equipment, crushers, and magnetic separation equipment. On the other hand, it is prone to hardening during cutting, making it difficult to process, so selecting not only the material but also the processing location is important. Kumagai Special Steel provides consistent support from cutting to machining, bending, and welding.
Inquire About This Product
Related Videos
basic information
- Looking for a liner material that can achieve both non-magnetic properties and wear resistance. - Want to replace components with ones that are less likely to crack under impact and are also resistant to wear. - Want to procure NM-13MN, which is difficult to process, in a state close to finished parts. Material: NM-13MN. Plate thickness 4.5 to 25 mm, standard size 1524×3048 mm. We support the sale of standard and cut products as well as additional processing. Since its corrosion resistance is not as high as stainless steel, please consider rust prevention measures according to the usage environment. This is an impact-resistant and wear-resistant steel characterized by high manganese content. Its main feature is that the surface work hardens during use, improving wear resistance. It has high toughness, is less likely to crack, and is suitable for applications where magnetic influence should be avoided as a non-magnetic steel. 1. Main specifications and characteristics - Representative material: NM-13Mn - Characteristics: High wear resistance due to work hardening - Toughness: Very high and impact-resistant - Magnetism: Non-magnetic 2. Features of processing and construction - Requires consideration of processing conditions due to high toughness - Compatible with gas and laser cutting - Welding, bending, and canning processing are possible - Selecting processing methods according to application is important 3. Performance points - Wear resistance improves under impact load - Less likely to crack and has a long lifespan - Improved maintainability due to reduced replacement frequency
Price range
Delivery Time
P3
※NM-13MN is a rather niche steel material. At Kumagai, we have an immediate delivery system in place for standard sheets, including cutting and processing, so it typically takes about a week depending on the lot. Additionally, for special specifications or large lots, it may take longer. Please feel free to contact us via email or phone!
Applications/Examples of results

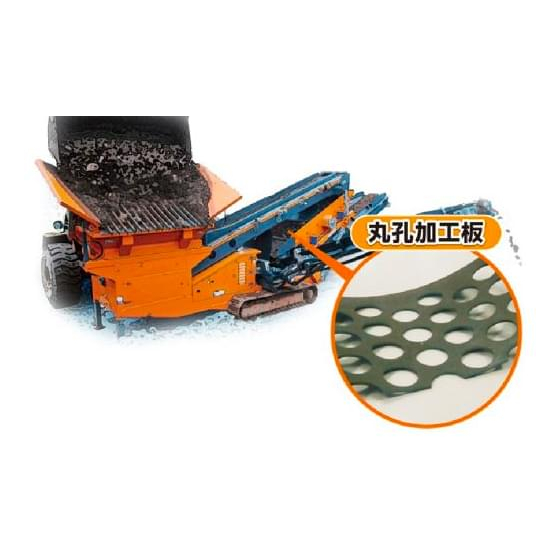

NM-13Mn is a material with excellent impact resistance and wear resistance due to work hardening, having a proven track record in harsh operating environments. Its characteristic of improving performance when subjected to impact makes it highly valued in applications where wear and impact occur simultaneously. 1. Main Applications and Practical Examples - Crushing and grinding machines: liners, hammers, screen components - Shot blasting equipment: inner linings, guide components - Construction machinery: wear parts, impact parts - Industrial machinery: conveying and feeding components, wear-resistant structural parts - Non-magnetic applications: machine parts where magnetic influence needs to be avoided 2. Evaluation Points in Practical Use - Improved wear life under impact loads - Stable use with reduced risk of cracking - Reduced maintenance burden due to lower frequency of part replacements 3. Expected Future Market Areas - Resource recycling and crushing sectors - Durable components associated with infrastructure renewal - Long-life parts for labor-saving equipment - Special equipment fields utilizing non-magnetic properties NM-13Mn is expected to continue expanding its adoption as a high-performance steel that contributes to improved equipment reliability and reduced maintenance costs in fields requiring a balance of wear resistance and impact resistance.
