Compatible with medical devices, ideal for insulation in high-temperature environments.

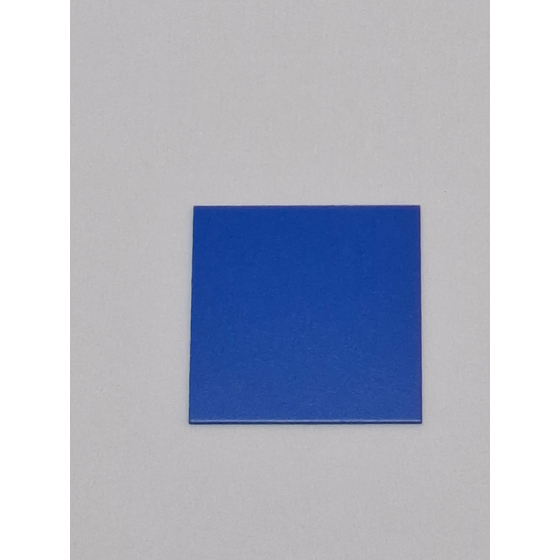

It is a silica-based ceramic coating. It combines heat resistance and insulation properties. There is a proven track record of its use in medical devices such as components that come into contact with the human body. You can try free samples of the colors shown in the image. Please contact us. (Sample size of the coated plate: 50mm × 50mm × 1mm)
Inquire About This Product
basic information
- Appearance: Three patterns in blue, white, and black - Standard film thickness: 20–30µm (thicker films are also possible) - Hardness: 8H (pencil hardness) - Heat resistance temperature: 500℃ - Dielectric strength (reference values for test specimens) - Blue: approximately 1kV at 20µm thickness, approximately 2.5kV at 40µm thickness - White: approximately 0.7kV at 20µm thickness, approximately 2kV at 40µm thickness - Black: approximately 0.5kV at 20µm thickness, approximately 1.3kV at 40µm thickness
Price range
Delivery Time
※The delivery time will vary depending on the quantity. Paid prototypes and small quantities usually take about two weeks or more. If you are in a hurry, we can accommodate shorter delivery times, so please consult with us.
Applications/Examples of results
- High-frequency knife for endoscopy - Coating of metal parts for artificial heart-lung devices (compatible with hydrogen peroxide gas plasma sterilization) - Insulation in high-temperature environments where fluororesin films cannot be used
catalog（1）
Download All Catalogs
Company information
Sawaheira Co., Ltd. has been building deep trust with everyone since its establishment in 1959 as a company capable of consistently handling everything from machining and pressing of machine parts to various coatings and assembly work. Our company contributes to cost reduction by being able to manufacture machine parts consistently, and we have also strived to be of service to everyone with our advanced technology and reliable quality control in cutting-edge precision machining, metal processing technology, and functional coating technologies such as fluororesin and molybdenum disulfide. Moving forward, we are committed to further advancing "technology development" and "quality control" to meet our customers' needs.
