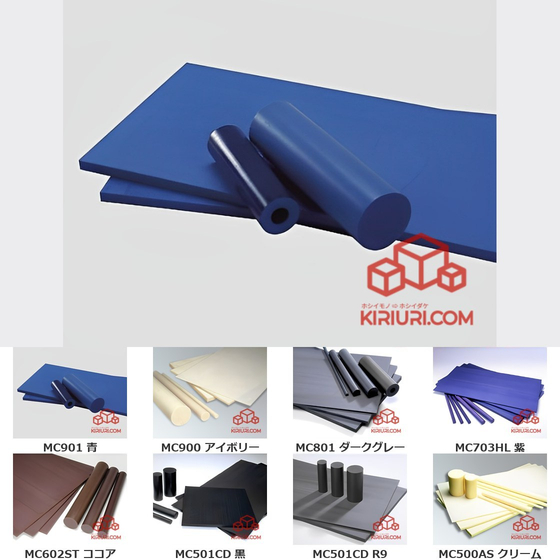

MC Nylon Round Rod (All 9 Grades φ10 to φ250)
MC901／MC900／MC801／MC703HL／MC602ST／MC501CD／MC500AS
For machining gears, bearings, and rollers. Selling cut pieces of MC nylon round bars from one piece.
MC Nylon is a cast nylon (PA6 series) polymerized using the monomer casting method. It excels in mechanical strength, wear resistance, and heat resistance compared to general nylon 6, and is widely used in machined parts such as gears, bearings, and rollers. KIRIURI.COM offers a range of round rods in 144 sizes (φ10 to φ250), starting from the basic grade MC901 (blue), as well as uncolored MC900, weather-resistant MC801, sliding MC703HL, heat-resistant up to 150°C MC602ST, conductive MC501CD (R2/R6/R9), and non-carbon anti-static MC500AS (R11). We also accommodate cutting to the required length and quantity. Material property tables and material explanation PDFs for each grade are available for download.
Inquire About This Product
basic information
【Material】MC Nylon (Cast Nylon PA6 series) / Manufactured by Mitsubishi Chemical Advanced Materials 【Shape】Round bar φ10 to φ250 (varies by grade) 【Length】100 to 1000mm in 100mm increments (varies by size) 【MC901 Reference Physical Properties】Specific gravity 1.16 / Tensile strength approximately 96MPa / Operating temperature −40 to 120℃ 【By Grade】 MC901 Blue: Basic grade MC900 Ivory: Equivalent to MC901, uncolored MC801 Dark Gray: Improved weather resistance and slip properties MC703HL Purple: Improved sliding properties MC602ST Cocoa: High strength, continuous use at 150℃ MC501CD R2/R6/R9 Black: Conductive, static electricity prevention MC500AS R11 Cream: Non-carbon static electricity prevention *The values are for reference only. Please check the physical property table PDF for each grade for accurate values.
Price information
Prices by size and length are published on KIRIURI.COM (stock confirmation and orders are for registered corporate members with credit terms). Free shipping for orders over 50,000 yen (excluding tax).
Delivery Time
P3
※In-stock items will be shipped within 4 business days after the order is confirmed.
Applications/Examples of results
- Gears, sprockets, pulleys - Bearings, bushes, slide plates - Rollers, wheels, guide rails - Sliding parts for conveyor machinery and food machinery - Outdoor construction machinery parts (MC801) - Wheels, liners, and jigs requiring heat resistance (MC602ST) - Semiconductor manufacturing equipment, cleanroom parts (MC501CD / MC500AS) 【Selection】If using as a standard, choose MC901; if uncolored, choose MC900. For outdoor use, select MC801; for a focus on sliding properties, choose MC703HL; for temperatures over 120°C or strength focus, choose MC602ST; for static electricity countermeasures, choose MC501CD (if avoiding carbon, choose MC500AS). 【Note】Dimensions may change due to moisture absorption. If dimensional stability is the top priority, consider POM, PPS, or PEEK.
Detailed information
-
MC901 (Blue) Basic Grade It excels in mechanical strength, wear resistance, heat resistance, and chemical properties compared to general 6 nylon. Continuous use temperature is approximately 120°C, and tensile strength is about 96 MPa. Suitable for various mechanical parts such as gears, bearings, and rollers. Round bars φ10 to φ250.
-
MC900 (Ivory) Natural Grade It has performance equivalent to MC901 and is an uncolored grade. Suitable for applications where coloring is to be avoided. Round rod φ20 to φ200.
-
MC801 (Dark Gray) Weather-Resistant Grade By adding special graphite, it improves weather resistance, wear resistance, and sliding performance. It blocks ultraviolet rays and withstands long-term outdoor use. Suitable for outdoor construction machinery parts, slide plates, and bearings. Round bars φ20 to φ250.
-
MC703HL (Purple) Sliding Grade Special lubricants are added to further enhance sliding properties and wear resistance. For guide rails, bearings, and components of conveying machinery. Round bars φ20 to φ50.
-
MC602ST (Cocoa color) high strength and heat-resistant grade. Improved heat resistance and mechanical strength, with a continuous use temperature of 150°C. Suitable for wheels, rollers, gears, liners, and jigs. Round bars φ50 to φ200.
-
MC501CD R2/R6 (Black) Conductive Grade Added carbon-based conductive fillers to impart conductivity and static electricity prevention. Suitable for parts of electronic components, semiconductor manufacturing equipment, and cleanroom parts. Round rods R2 φ10 to φ130 / R6 φ10 to φ50.
-
MC501CD R9 (Black) Conductive Grade Type R9 of the MC501CD series. It is endowed with conductivity and antistatic properties using carbon-based conductive fillers. Round rods φ60 to φ130.
-
MC500AS R11 (Cream) Non-carbon Antistatic Grade Provides antistatic properties without using carbon. It has higher resistance range antistatic properties than MC501CD, suitable for applications where carbon contamination should be avoided. Round rod φ20.
Line up（9）
| Model number | overview |
|---|---|
| MC901 Blue (Basic) Round Bar | Round bars φ10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 85, 90, 95, 100, 110, 120, 130, 140 (length 100 to 1000mm) / φ150, 160, 170, 180, 190, 200, 225, 250 (length 1000mm). Sold by the required number of pieces. |
| MC900 Ivory (Uncolored) Round Rod | Round bars φ20・25・30・35・40・45・50・55・60・65・70・75・80・85・90・95・100・110・120・130・140 (length 100 to 1000mm) / φ150・160・170・180・190・200 (length 1000mm). Sold in required lengths. |
| MC801 Dark Gray (Weather Resistant) Round Bar | Round bars φ20・25・30・35・40・45・50・55・60・65・70・75・80・85・90・95・100・110・120・130・140 (length 100 to 1000mm) / φ150・160・180・200・225・250 (length 1000mm). Sold in required quantities. |
| MC703HL Purple (Sliding) Round Bar | Round bars φ20・25・30・35・40・45・50 (length 100 to 500mm). Sold by the required quantity. |
| MC602ST Cocoa (Heat Resistant 150°C) Round Bar | Round bars φ50・55・60・65・70・75・80・90・100・110・120・130・140 (length 100-500mm) / φ150・160・180・200 (length 500mm). Sold by the required quantity. |
| MC501CD R2 Black (Conductive) Round Bar | Round bars φ10, 15, 20, 25, 30, 35, 40, 45, 50 (length 100 to 1000mm) / φ60, 70, 80, 90, 100, 110, 120, 130 (length 100, 200mm). Sold by the required number of pieces. |
| MC501CD R6 Black (Conductive) Round Bar | Round bars φ10, 15, 20, 25, 30, 35, 40, 45, 50 (length 100 to 1000 mm). Sold in required quantities. |
| MC501CD R9 Black (Conductive) Round Bar | Round bars φ60・70・80・90・100・110・120・130 (length 100・200mm). Sold by the required number of pieces. |
| MC500AS R11 Cream (Antistatic) Round Bar | Round bar φ20 (length 100 to 500mm). Sold by the required number of pieces. |
