For prototyping, jigs, and cover machining. Selling cut lengths of easy-to-machine ABS round bars starting from one piece.
ABS is a general-purpose resin composed of three components: acrylonitrile, butadiene, and styrene. It is characterized by its ease of machining, adhesion, and painting, as well as its affordability, making it widely used in situations where the goal is to "first create a shape," such as prototypes, jigs, and covers. KIRIURI.COM offers HSNAC-ABS from Japan Vacuum Chemical in two colors, natural (φ10 to φ230) and black (φ15 to φ150), available in 38 sizes of round rods. We also accommodate cutting to the required length and quantity. Material property tables and material explanation PDFs are available for download.
Inquire About This Product
basic information
【Material】ABS (Acrylonitrile Butadiene Styrene) / HSNAC-ABS (Nihon Vacuum Kogyo) 【Shape】Round rod φ10 to φ230 (varies by color) 【Color】Natural / Black 【Reference Properties】TPS-ABS NC / BK (Toray Plastics Engineering, unfilled grade) values Specific Gravity 1.04 / Tensile Strength 39MPa / Flexural Strength 63MPa / Izod Impact Value 28J/m / Load Deflection Temperature (1.82MPa) 80℃ / Flammability HB equivalent *HSNAC-ABS does not have published property tables from the manufacturer, so values from a similar unfilled ABS are provided as reference. *The values are for reference only. Please check the manufacturer's latest data sheet for accurate values.
Price information
Prices by size are published on KIRIURI.COM (stock confirmation and orders are for corporate members who have registered for deferred payment). Free shipping for orders over 50,000 yen (excluding tax).
Delivery Time
P3
※In-stock items will be shipped within 4 business days after the order is confirmed.
Applications/Examples of results
- Prototypes (models for shape and mechanism verification) - Jigs (positioning jigs, holding devices, simple gauges) - Covers and panels for indoor equipment - Sculptures intended for painting, such as models and display items - Lightweight insulating parts and cases [Selection Criteria] If you prioritize machinability, adhesion, and paintability, consider ABS. If impact resistance is required, consider PC/ABS or PC; for chemical resistance and water resistance, consider PP. [Note] The load deflection temperature is low at 80°C, and it tends to weld to cutting tools due to processing heat, so effective chip removal is crucial. It can yellow and degrade under ultraviolet light and is susceptible to organic solvents like acetone, so it is primarily for indoor use.
Detailed information
-

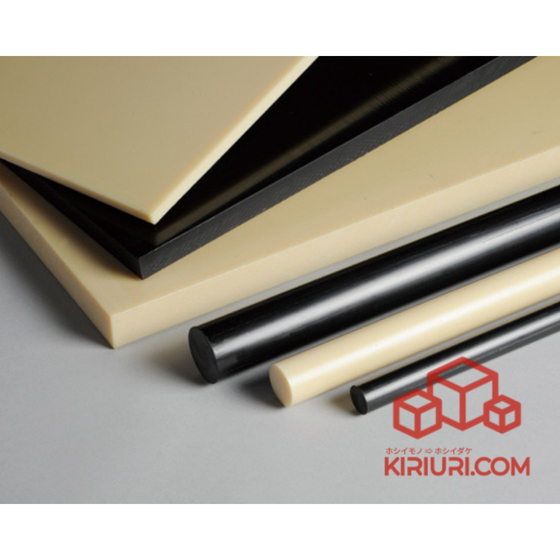

ABS (Natural) Round Rod Due to its low cutting resistance and smooth surface finish, it is suitable for machining prototypes and jigs. Solvent-based adhesives work well, and paint adhesion is also good. Round rod diameter φ10 to φ230.
-
ABS (Black) Round Rod This is a black version of HSNAC-ABS, the same as the natural one. It is easy to cut, bond, and paint, making it suitable for indoor equipment covers and jigs. Round rod φ15 to φ150.
Line up（2）
| Model number | overview |
|---|---|
| ABS (Natural) Round Rod | φ10・φ15・φ20・φ25・φ30・φ35・φ40・φ45・φ50・φ55・φ60・φ70・φ80・φ90・φ100・φ110・φ120・φ130・φ150・φ180・φ200・φ230 (a total of 22 sizes). Available for sale cut to the required dimensions. |
| ABS (Black) Round Bar | φ15, φ20, φ25, φ30, φ35, φ40, φ45, φ50, φ60, φ70, φ80, φ90, φ100, φ120, φ130, φ150 (a total of 16 sizes). Available for sale in required dimensions. |
catalog（2）
Download All Catalogs![[Material Explanation] What is ABS (Acrylonitrile Butadiene Styrene) | kiriuri.com](https://image.mono.ipros.com/public/catalog/image/359430/IPROS16451300764996239080.jpeg?w=120&h=170)
![[Physical Properties Table] ABS | kiriuri.com](https://image.mono.ipros.com/public/catalog/image/359430/IPROS16471555471188756142.jpeg?w=120&h=170)
