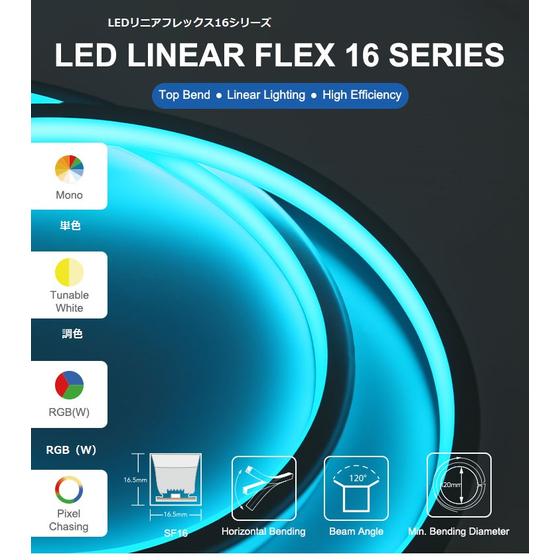

IP68 Pool, Hot Spring, Outdoor SF16 Linear Flex Light Monochrome
LED Linear Flex SF16-3528-144-X
Bright at 10W, bendable at 60R, and available in 14 colors. With single-side input, it can reach up to 10m, and is dimmable, making it suitable for outdoor use, spas, and installation in pools.
The surface treatment is smooth and resistant to dirt, has excellent weather resistance, and is resistant to solvents, seawater, and chemicals, with an IP68 protection rating allowing for use at depths of up to 2 meters. Waterproof treatment is provided by a stop valve to prevent moisture ingress from the wiring connection. Additionally, high-density injection molded connectors are used. The LED substrate has high torsional and bending characteristics, and the thicker circuit design prevents voltage drop. Medical-grade gas-phase silicone is used for the tubing, which is strong, transparent, and has a high UV grade. Cable processing for terminals can be customized, with options for installation clips and rails depending on the situation. It supports 0-10V, PWM, and DALI dimming, and DMX control is also possible via a DMX decoder.
Inquire About This Product
basic information
Product Name: LED Linear Flex SF16 Series Applications: Hotels, homes, offices, gardens, buildings, pools Exterior: Silicone (PVC option available for outdoor use) Lifespan (hours): 50,000 IP Protection Rating: IP68 for wet environments and underwater up to 2m Input Voltage (V): DC 24V Power Consumption: 10W/m Structure: Number of LEDs: 144 LEDs/m Cutting Unit: 12 LEDs Cutting Length Unit: 83.3 mm Minimum Bending Diameter: 120mm LED: Epistar SMD LED 3528 Maximum Operating Distance*: Single Feed: 10M, Double Feed: 20M Beam Angle: 120° Luminous Flux Maintenance: 70,000 Hours L70 @ 25°C, 50,000 Hours L70 @ 50°C Installation: 0°C to 50°C Operating Temperature: -40°C to 55°C
Price information
L=10m+ molded connector + cable with 0.6m attached
Price range
P3
Delivery Time
Applications/Examples of results
Lighting for the outlines and edges of hotels, homes, offices, gardens, and buildings; built-in lighting for freshwater and seawater pools, hot springs, super sento (Japanese public bathhouses), and spas.
Detailed information
-
IP68 products are provided with molded processing completed at the manufacturer's factory. Please specify the finishing method of the device and the direction of the cable outlet.
-
Please select the fixed clip according to the installation method.
