Bright at 13W, available in RGB and RGBW, with customizable color temperature for white. Suitable for pools, spas, hot tubs, and general indoor and outdoor lighting.
The surface treatment is smooth, making it resistant to dirt, with excellent weather resistance, and it is resistant to solvents, seawater, and chemicals, with an IP68 protection rating allowing for use at depths of up to 2 meters. Waterproof treatment is provided by a sealing plug to prevent moisture ingress from the wiring connection. Additionally, high-density injection molded connectors are used. The LED substrate has high twisting and bending characteristics, and the thicker circuit design prevents voltage drop. A medical-grade gas-phase silicone is used, which is strong, transparent, and has a high UV grade. Cable processing for terminals can also be customized, with options for installation clips and rails depending on the situation. PWM control and DMX control via a DMX decoder are also possible.
Inquire About This Product
basic information

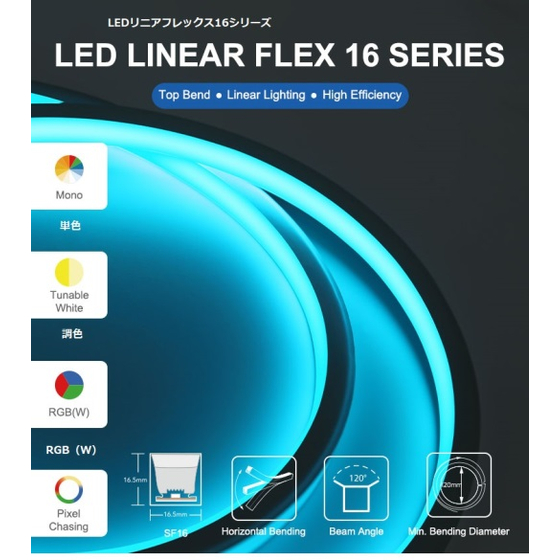

Product Name: Silicon LED Linear Flex SF16 Series Applications: Hotels, homes, offices, gardens, buildings, pools Exterior: Silicone (PVC option available for outdoor use) Lifespan (hours): 50,000 IP Protection Rating: IP68 for wet environments and underwater up to 2m Input Voltage (V): DC 24V Power Consumption: 13W/m Structure: Number of LEDs: 72 LEDs/m Cutting Unit: 6 LEDs Cutting Length Unit: 83.3 mm Minimum Bending Diameter: 120 mm LED: Epistar SMD LED 5050 Maximum Operating Distance: Single-side input 10M, Double-side input 20M Beam Angle: 120° Luminous Flux Maintenance: 70,000 Hours L70 @ 25°C, 50,000 Hours L70 @ 50°C Installation: 0°C to 50°C Operating Temperature: -40°C to 55°C
Price information
L=5m terminal IP68 waterproof connector processing with cable L=0.6m included.
Price range
P2
Delivery Time
P4
Applications/Examples of results
Installation of interior walls for pools, water basins, fountains, and area indirect lighting Decorative lighting for ships Pilot lighting for building outlines, walkways, etc. Lighting for super sento bathtubs, ceilings, floors, as well as in cold baths and hot spring tubs Please feel free to consult us for other inquiries.
Detailed information
-
Request for production specifying length and finishing method at both ends.
-
Select the installation clip according to the situation.
-
Red
-
Green
-
Blue
-
Building exterior, outline decoration
